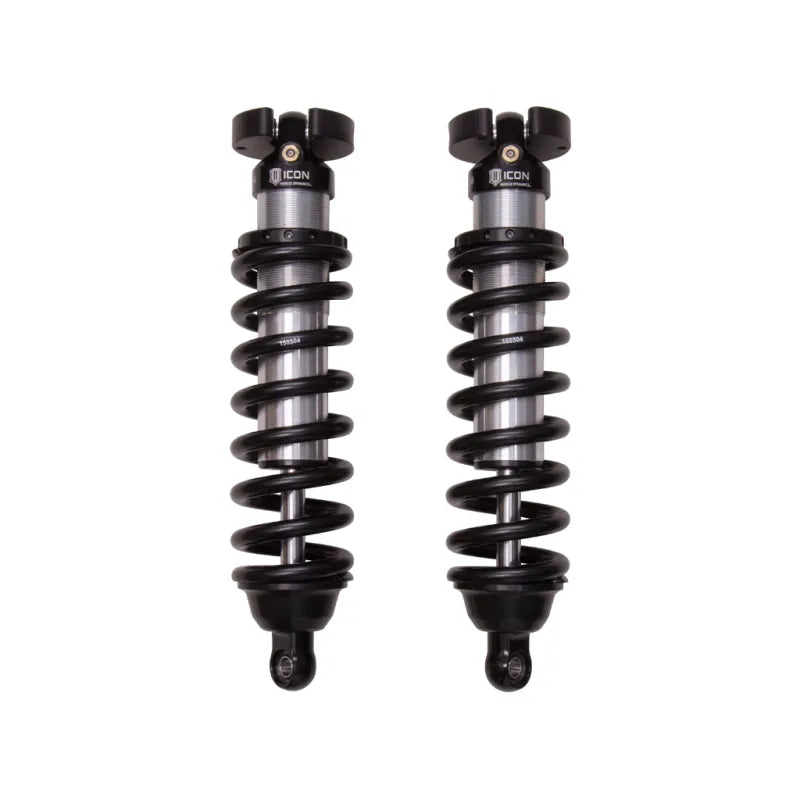

1996-2004 Toyota Tacoma 1996-2002 Toyota 4Runner 0-3 Inch Lift Front V.S. 2.5 Series Coilover Kit Internal Reservoir Icon Vehicle Dynamics

Part #: 58610

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These adjustable coilovers allow up to 0-3 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma or Toyota 4Runner.Features and Benefits:Increased wheel travel and improved ride quality over stockVehicle specific tuned for superior shock damping and controlHeight-adjustable coilovers offer 0-3 Inch of front lift height adjustmentICON engineered coil springs6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated shock bodies with 7/8 Inch diameter shaftsFK rod end bearings for extended longevity and minimal deflectionFully rebuildable and re-tunableDetailsMaterial: Aluminum, SteelActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 14.5Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Type: OilDust Shield Included: NoExtended Length: 19.45Front Spring Rate: 650 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.0 InchMaximum Ride Height Raising Distance: 3.0Minimum Lift: 0.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm OffsetRemote Reservoir: NoReservoir Style: InternalSelf Leveling: NoService Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 611067 - Tacoma/FJ Cruiser 4Rnr Lower Co Brg/Spcr Kit, 252003 - Seal Install Tool 2.5/3.0, 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 252010 - 2.5 Ifp Rebuild Kit, 611019 - Coilover Hardware Kit Pair, 252004 - Economy Needle Charging ToolShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 4.96Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 58500DJ - 96-04 Tacoma/96-02 4RNR Billet UCA Dj Kit, 158508 - Coil Spring 1400.0300.0700 Black, 198001 - Billet Spanner Wrench Kit, 58400DJ - 96-04 Tacoma/96-02 4RNR Tubular UCA Dj Kit, 51045 - Toyota .25 Inch Bump Stop Spacer Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25)

Features:

• Adjustable ride height from 0" - 3"
• Race shock piston with flutter stack compression valving
• Cad-plated threaded body
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearings
• Completely re-buildable
• 2.5" shock diameter to prevent overheating
• Chrome-silicon spring
• 250 PSI nitrogen-charged internal reservoir

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
