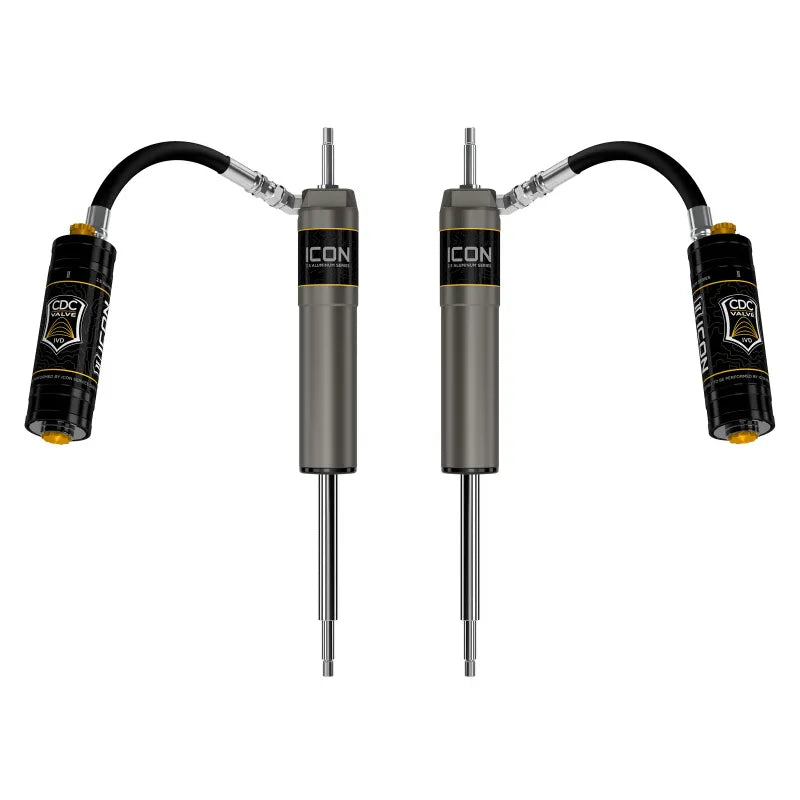

1997-2023 Nissan Patrol Y61 0-2.5 Inch Lift Front V.S. 2.5 Aluminum Series Shock Absorbers Remote Reservoir W/ CDCV Pair Icon Vehicle Dynamics

Part #: 87842CP

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. The larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.Features and Benefits:ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knobPremium grade 5WT shock oil for consistent suspension damping along a wide temperature range6061 aircraft grade aluminum CNC machined components7/8 Inch diameter induction hardened, chrome plated shock shaftPolyurethane bushings and application specific mounting hardwareOne piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-roadNitrogen charged monotube design with piggyback reservoir100 Percent Rebuildable100 Percent RevalveableOne-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finishRemote reservoir design improves heat dissipation to reduce shock fade during prolonged useDetailsActive Or Passive Suspension: PassiveAdjustable: YesAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NoBore Diameter: 2.25Cylinder Color: GreyCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: ManualDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: StemMounting Hardware Included: YesReservoir Type: RemoteService Parts: 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 254100G - 1 Gallon Icon Performance Shock Oil, 252003 - Seal Install Tool 2.5/3.0, 257341 - 7/8 Shaft 15.85 Oal, 11.00 Travel, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 257338STEM - 7/8 Shaft 13.98 Oal 8.00 Travel, 252001 - 2.5 Fixed Spanner Wrench, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 611006 - 9/16 HD Stem Bushing KitShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder Of StemShock Absorber Rod End Measuring Point: Shoulder Of StemTube Outside Diameter: 2.5Upper Mount Type: StemValving Type: DigressiveAdd On Part: 252012 - -4 To -10 Hose Shield Kit

ICON Vehicle Specific 2.5 Aluminum Series shocks give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
