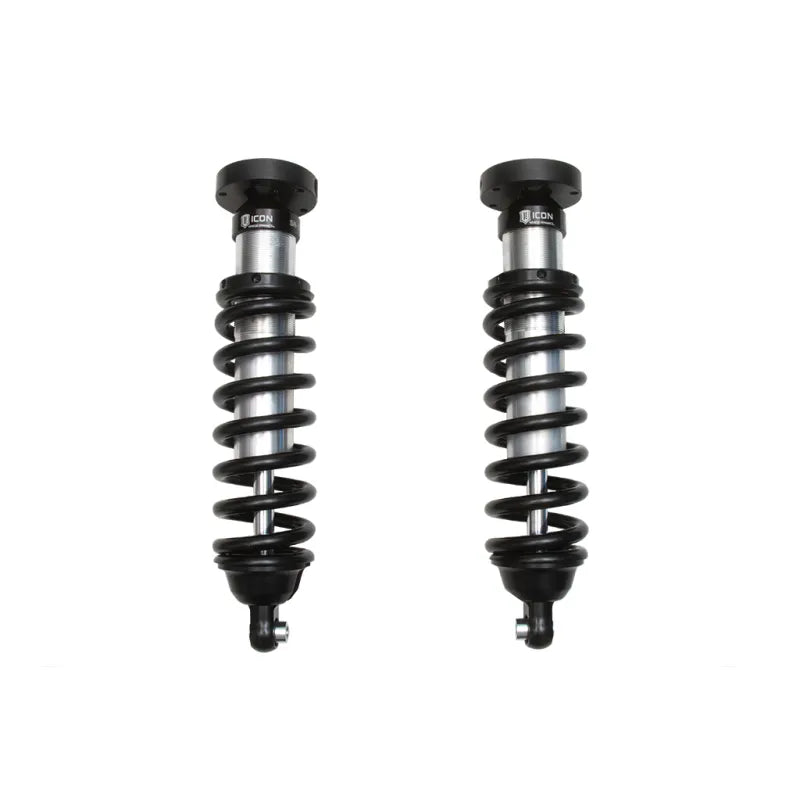

2000-2006 Toyota Tundra 2001-2007 Toyota Sequoia V.S. 2.5 Series Coilover Kit Internal Reservoir 700 Lb In Coils Icon Vehicle Dynamics

Part #: 58620-700

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2000-2006 Toyota Tundra and 2001-2007 Toyota Sequoia. These adjustable coilovers allow up 0-2.5 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.ICON's Vehicle-specific shock length and valving, their large 2.5 Inch shock body with increased piston surface area over stock components, yield increased front wheel travel along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight.When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your vehicle.Features and Benefits:Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stockVehicle specific shock length and pairing with stock front upper control arms yield increased wheel travelHeight-adjustable coilovers offer 0-2.5 Inch of lift height adjustment over stockICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends2.5 Inch diameter shock bodies with internal reservoirs for consistent performance6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated shock bodies with 7/8 Inch diameter shaftsFK rod end bearings for extended longevity and minimal deflectionFully rebuildable and re-tunableDetailsMaterial: Steel, AluminumActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 14.51Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Type: OilDust Shield Included: NoExtended Length: 19.46Front Spring Rate: 700 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 2.5 InchMaximum Ride Height Raising Distance: 2.5Minimum Lift: 0.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm OffsetRemote Reservoir: NoReservoir Style: InternalSelf Leveling: NoService Parts: 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 252003 - Seal Install Tool 2.5/3.0, 252010 - 2.5 Ifp Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 254100G - 1 Gallon Icon Performance Shock Oil, 611019 - Coilover Hardware Kit Pair, 611067 - Tacoma/FJ Cruiser 4Rnr Lower Co Brg/Spcr Kit, 252004 - Economy Needle Charging ToolShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 4.96Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 51045 - Toyota .25 Inch Bump Stop Spacer Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25)

Features:

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with stock front upper control arms yield increased wheel travel
• Height-adjustable coilovers offer 0-2.5" of lift height adjustment over stock
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
• 2.5" diameter shock bodies with internal reservoirs for consistent performance
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride quality across varying types of terrain.
