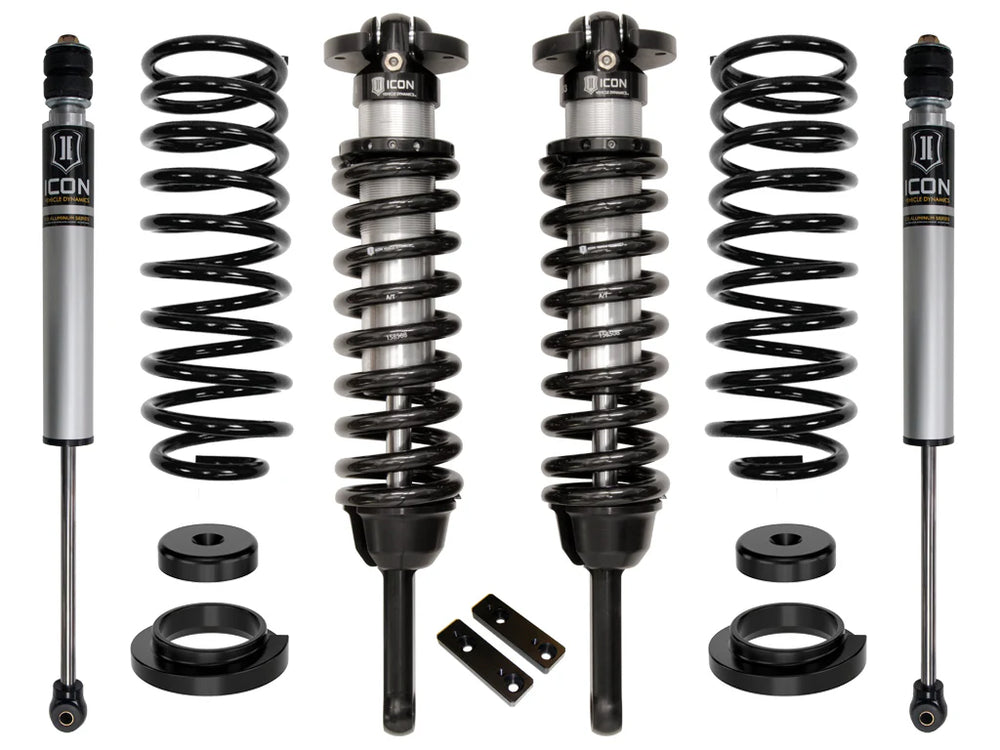

03-09 GX470 0-3.5 Inch Stage 1 Suspension System Icon Vehicle Dynamics

Part #: K53171

The Stage 1 system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from 0-3.5 Inch of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations.ICON 2 Inch lift rear coil springs paired with 2.0 Aluminum Series internal reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. Specifically for the GX470 platforms a rear coil spring conversion kit is included to eliminate the factory rear air bags.The ICON Vehicle Dynamics 2003-2009 Lexus GX470 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.Features and Benefits:Increased wheel travel and ride quality over stockVehicle specific tuned front and rear shocks for superior shock damping and controlAdjustable coilovers provide 0-3.5 Inch of lift height6061 aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated coilover shock body with 7/8 Inch shaftFK Rod End bearings for extended longevity and minimal deflection2.0 Aluminum Series rear IFP shocks with 5/8 Inch shaftsIncluded rear coil conversion kit eliminates factory air systemBolt-on system means no cutting or welding necessary for installDetailsBushings Included: YesCoils Quantity Front: 2.0Coils Quantity Rear: 2.0Grade Type: PerformanceMaximum Lift: 3.5 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelSpring Rate: 650.0Add On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit

Features:

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of lift height
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear IFP shocks with 5/8" shafts
• Included rear coil conversion kit eliminates factory air system
• Bolt-on system means no cutting or welding necessary for install

2003-2009 LEXUS GX470 0-3.5" LIFT STAGE 1 SUSPENSION SYSTEM
