03-12 RAM 2500/3500 4WD 2.5 Inch Stage 4 Suspension System Icon Vehicle Dynamics

Part #: K212504T

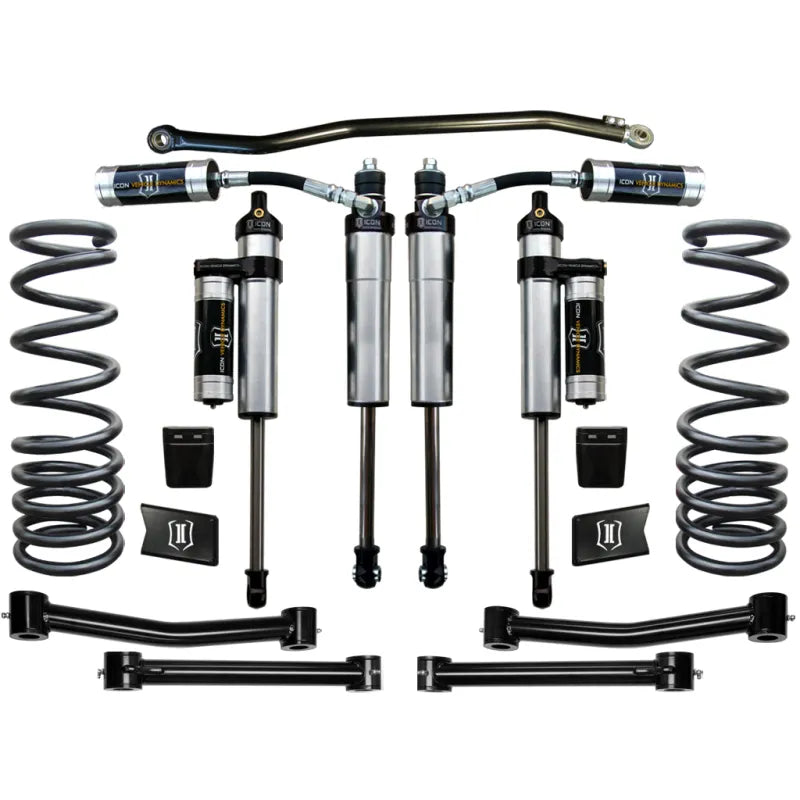

2003-2012 Ram 2500/3500 2.5 Inch Stage 4 Suspension System is our ultimate performance kit that offers extraordinary diversity across any terrain. This system not only levels out the stance, it increases ride quality and performance substantially both on and off-road.The Stage 4 System is comprised of dual rate coil springs, polyurethane bump stops, sway bar drop brackets, 2.5 Inch V.S. Aluminum Series shocks, bearing style adjustable track bar, and tubular steel upper & lower links.ICON 2.5 Inch Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap & rod ends, and 7/8 Inch shafts for strength.The adjustable track bar with bearings not only improves rigidity over the flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment.These link arms decrease the bind found in the factory link bushings. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.Features and Benefits:ICON engineered dual rate coil springs with match tuned 2.5 Inch V.S. Aluminum Series shocks2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finishAdjustable track bar with PTFE lined FK bearingsHeavy-duty steel upper and lower link barsIncreased wheel travel and ride quality over stock with no change in towing capacityLevel stance front to rearLess body roll than stockNo drive shaft modifications neededDetailsBushings Included: YesCoil Spring End 1 Type: OpenCoil Spring End 2 Type: OpenCoils Quantity Front: 2.0Dual Rate Coil Springs: YesGrade Type: PerformanceMaximum Lift: 2.5 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.25 Inch Bs / 13mm Offset, Icon Alloys - 20x9 Inch W/ 5.50 Inch Bs / 12mm Offset, Icon Alloys - 18x9 Inch W/ 5.50 Inch Bs / 12mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 216520 - 09-Up RAM HD 2.0 Steering Stabilizer, 191014 - .25 Inch Collar Spanner Pin Wrench, 252012 - -4 To -10 Hose Shield Kit

Features:

• ICON engineered dual rate coil springs with match tuned 2.5" V.S. Aluminum Series shocks
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Adjustable track bar with PTFE lined FK bearings
• Heavy-duty steel upper and lower link bars
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Level stance front to rear
• Less body roll than stock
• No drive shaft modifications needed

2003-2012 RAM 2500/3500 4WD 2.5" LIFT STAGE 4 SUSPENSION SYSTEM
