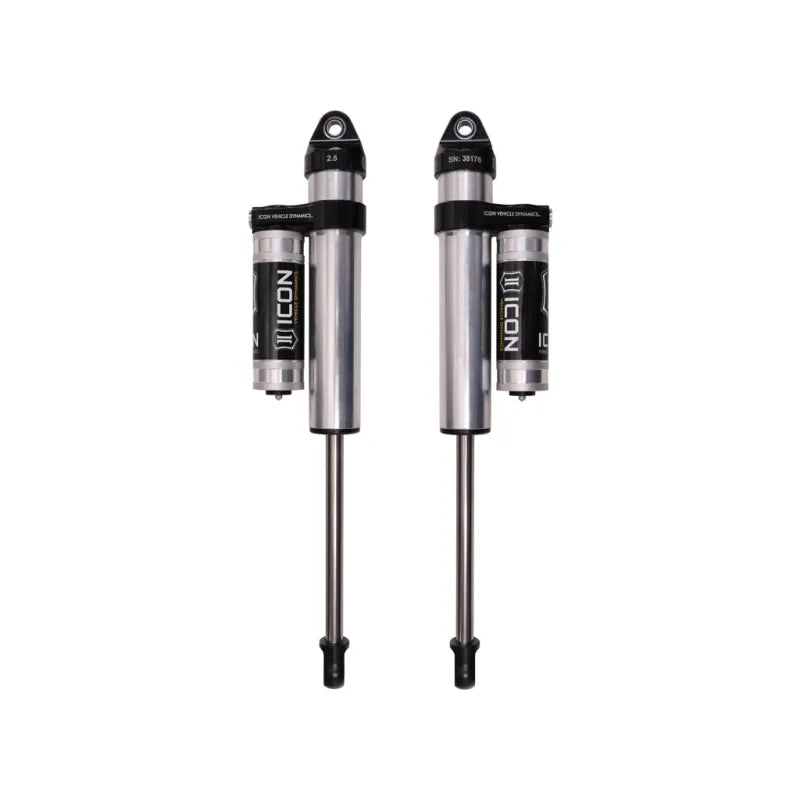

ICON 2003-12 Ram 2500/3500 HD, 2-3" Lift, Rear, 2.5 VS Piggyback Shocks, Pair

Part #: 217701P

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.Features and Benefits:ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compressionRemote reservoir design improves heat dissipation to reduce shock fade during prolonged usePremium grade 5WT shock oil for consistent suspension damping along a wide temperature rangeNitrogen charged monotube design with piggyback reservoirOne piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road7/8 Inch diameter induction hardened, chrome plated shock shaftPTFE lined spherical bearings and application specific mounting hardware6061 aircraft grade aluminum CNC machined componentsOne-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish100 Percent Rebuildable100 Percent RevalveableAll ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)DetailsAdjustable: NoBoot Included: NoBore Diameter: 2.25Cylinder Color: SilverCylinder Material: SteelDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EyeletMounting Hardware Included: YesService Parts: 257342 - 7/8 Shaft 16.85 Oal, 12.00 Travel, 254100G - 1 Gallon Icon Performance Shock Oil, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 191015 - 10 Inch Finned Resi Upgrade Kit, 252003 - Seal Install Tool 2.5/3.0, 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)Shaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center Of EyeletShock Absorber Rod End Measuring Point: Center Of EyeletUpper Mount Type: Eyelet

Features:

• ICON's internal Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)

2003-2012 RAM HD 2-3" LIFT REAR 2.5 VS PIGGYBACK SHOCK PAIR
