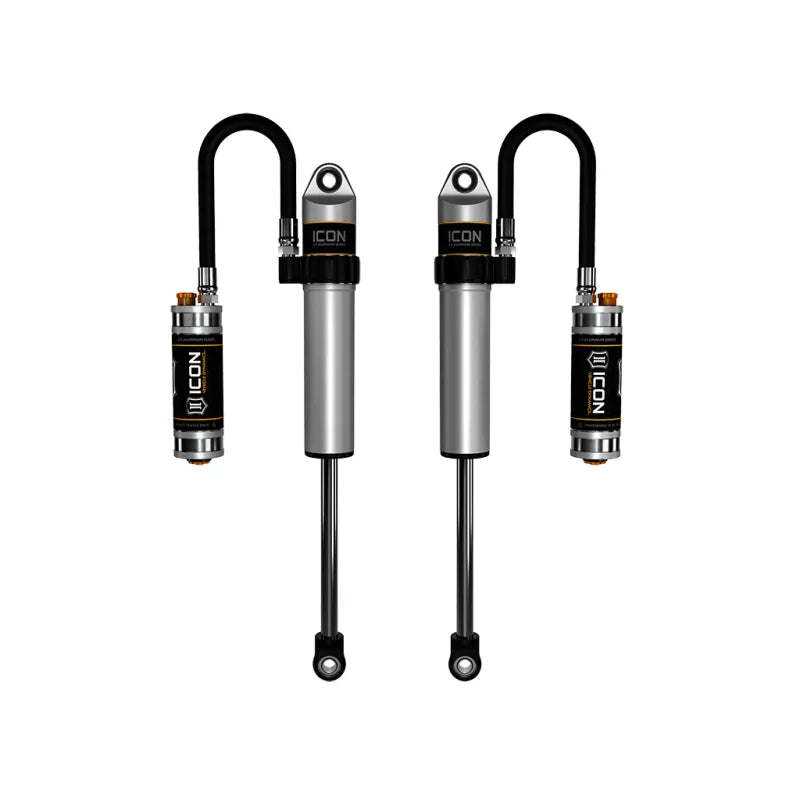

2003-2024 Toyota 4Runner 2005-2023 Toyota Tacoma 2007-2014 Toyota FJ Cruiser Front 2.5 Vs Long Travel Remote Reservoir W/ CDCV Secondary Shocks Pair Icon Vehicle Dynamics

Part #: 59703CP-CB

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.Features and Benefits:ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compressionNitrogen charged monotube design with remote reservoir6061 aircraft grade aluminum CNC machined componentsRemote reservoir design improves heat dissipation to reduce shock fade during prolonged useOne piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road7/8 Inch diameter induction hardened, chrome plated shock shaftOne-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finishICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knobPremium grade 5WT shock oil for consistent suspension damping along a wide temperature rangePTFE lined spherical bearings and application specific mounting hardw100 Percent Rebuildable100 Percent RevalveableDetailsAdjustable: YesAdjustable Damping: YesBoot Included: NoBore Diameter: 2.25Cylinder Color: GreyCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: ManualDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EyeletMounting Hardware Included: YesService Parts: 257339 - 7/8 Shaft 13.25 Oal, 9.00 Travel, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252001 - 2.5 Fixed Spanner Wrench, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252003 - Seal Install Tool 2.5/3.0, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 254100G - 1 Gallon Icon Performance Shock OilShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center Of EyletShock Absorber Rod End Measuring Point: Center Of EyletTube Outside Diameter: 2.5Upper Mount Type: EyeletAdd On Part: 252012 - -4 To -10 Hose Shield Kit, 252008 - 2.5 X 13 Shock Boot Black (Pair)

Features:

• ICON's internal Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardw
• 100% Rebuildable
• 100% Revalveable

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs, damping adjustability, and are 100% rebuildable/revalveable.
