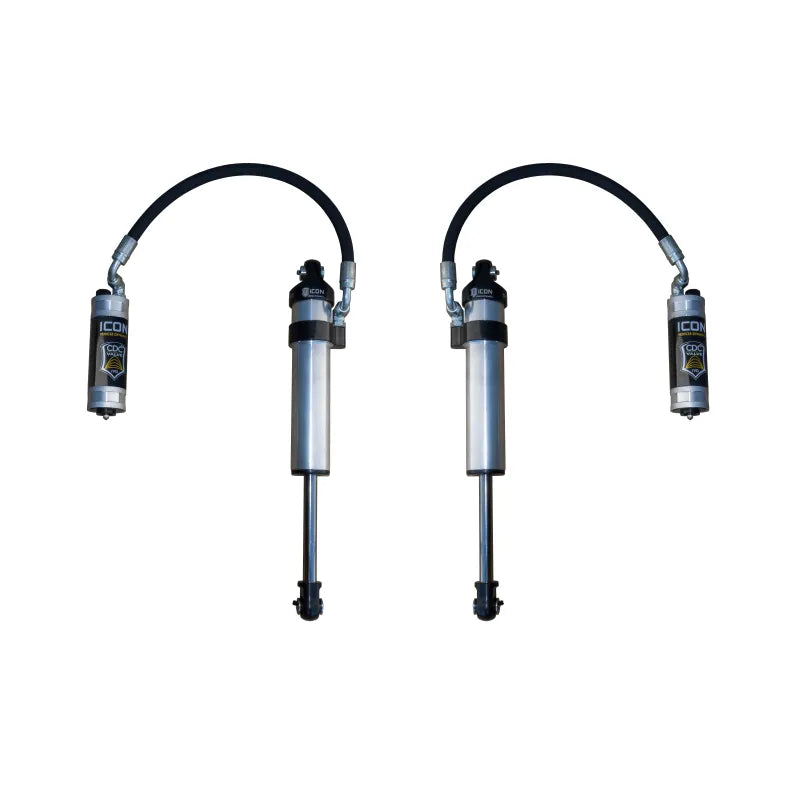

2003-2024 Toyota 4Runner 2005-2023 Toyota Tacoma 2007-2014 Toyota FJ Cruiser Front 2.5 Vs Stock Width Remote Reservoir W/CDCV Secondary Shocks Pair Icon Vehicle Dynamics

Part #: 59702CP-CB

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.Features and Benefits:Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use6061 aircraft grade aluminum CNC machined componentsICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compressionPTFE lined spherical bearings and application specific mounting hardwICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob7/8 Inch diameter induction hardened, chrome plated shock shaftOne piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-roadNitrogen charged monotube design with remote reservoirPremium grade 5WT shock oil for consistent suspension damping along a wide temperature rangeOne-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish100 Percent Rebuildable100 Percent RevalveableDetailsAdjustable: YesAdjustable Damping: YesBoot Included: NoBore Diameter: 2.25Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: ManualDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EyeletMounting Hardware Included: YesService Parts: 257339 - 7/8 Shaft 13.25 Oal, 9.00 Travel, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 254100G - 1 Gallon Icon Performance Shock OilShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center Of EyletShock Absorber Rod End Measuring Point: Center Of EyletTube Outside Diameter: 2.5Upper Mount Type: EyeletAdd On Part: 252012 - -4 To -10 Hose Shield Kit, 252008 - 2.5 X 13 Shock Boot Black (Pair)

Features:

• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• 6061 aircraft grade aluminum CNC machined components
• ICON's internal Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• PTFE lined spherical bearings and application specific mounting hardw
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• 7/8" diameter induction hardened, chrome plated shock shaft
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Nitrogen charged monotube design with remote reservoir
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs, damping adjustability, and are 100% rebuildable/revalveable.
