05-07 Ford F250/F350 7 Inch Stage 5 Suspension System W Radius Arm Icon Vehicle Dynamics

Part #: K67104R

This ICON Vehicle Dynamics 7 Inch suspension system is a great way to lift your 4WD 2005-2007 Ford F250/350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and provides ultimate performance for extreme off-road adventure.ICON's 7 Inch Stage 5 System is comprised of dual rate coil springs, progressive leaf springs, 4-Link kit, ICON CDC Valve 2.5 Aluminum Series piggyback reservoir front and rear shocks, plus all of the necessary hardware for installation.Features and Benefits:This Stage 5 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37 Inch tall tire clear without coming in contact with the radius arm.Approximately 50 Percent increased front wheel travel over stockOne-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finishFK Rod End bearings provide extended longevity and minimal deflectionLifetime guarantee against coil spring breakage or sagLifetime guarantee against ICON fabricated component breakage or manufacturer defectICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrainProgressive leaf springs improve ride quality without reducing towing capacityFabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lockICON CDC Valve allows for 10 clicks of quick and easy compression adjustabilityICON shocks feature vehicle specific tune for superior performance and ride qualityShocks are fully rebuildable and re-valvableDetailsBushings Included: YesCoils Quantity Front: 2.0Dual Rate Coil Springs: YesGrade Type: PerformanceMaximum Lift: 7.0 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel

Features:

• Approximately 50% increased front wheel travel over stock
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• FK Rod End bearings provide extended longevity and minimal deflection
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Progressive leaf springs improve ride quality without reducing towing capacity

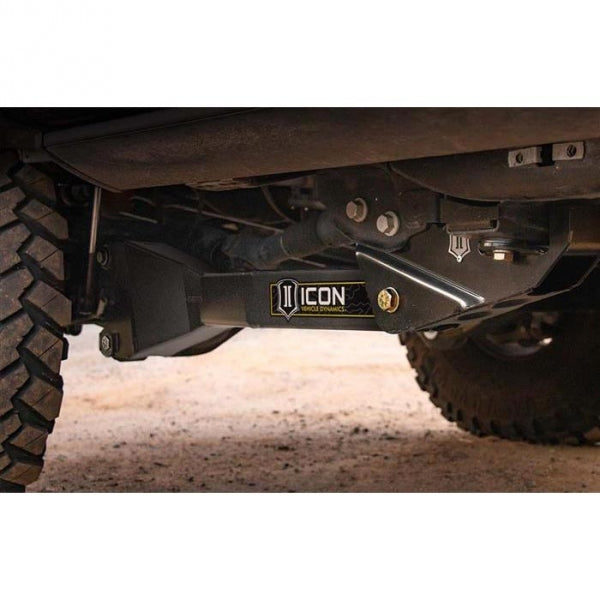

• Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• ICON CDC Valve allows for 10 clicks of quick and easy compression adjustability
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Shocks are fully rebuildable and re-valvable

2005-2007 FORD F-250/F-350 SUPER DUTY 7" LIFT STAGE 5 SUSPENSION SYSTEM WTIH RADIUS ARM
