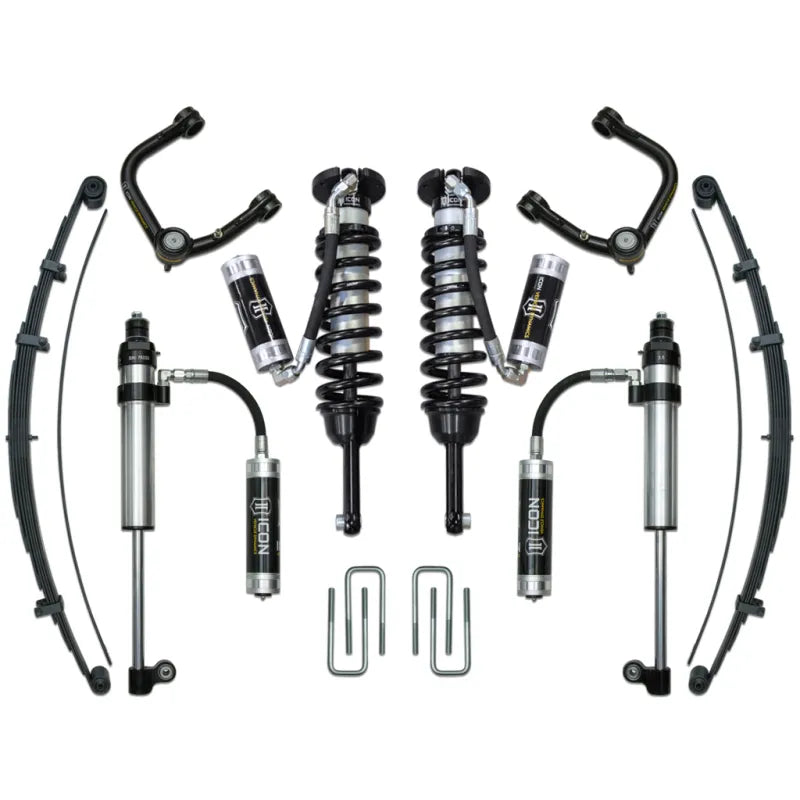

2005-2015 Toyota Tacoma 0-3.5 Inch Lift/2016-2023 Tacoma 0-2.75 Inch Lift Stage 8 Suspension System Tubular UCA Icon Vehicle Dynamics

Part #: K53008T

ICON Vehicle Dynamics 2005-2023 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. Throughout the development of these systems ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.This Stage 8 system goes a step further in delivering ICON performance to the Tacoma with the addition of rear suspension components that include an ICON RXT multi-rate leaf spring and a unique RXT-specific 2.5 Aluminum Series shock.Features and Benefits:The Stage 8 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from 0-3.5 Inch for 2005-2015 models or 0-2.75 Inch for 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON tubular upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional 10-20 Percent spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an Inchunloaded Inch vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel the Stage 8 system includes a unique 2.5 Aluminum Series remote reservoir shock that features a side-mount eyelet that making it shorter in collapsed length, longer at extension, and still fits in the factory mounting location. A large ten-inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving.This system features tubular front upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.Increased wheel travel and ride quality over stockVehicle specific tuned front and rear shocks for superior shock damping and control2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard useAdjustable coilovers provide up to 3.5 Inch of front lift height on 2005-2015 models and up to 2.75 Inch on 2016-2023 modelsExtended Travel coilovers offer maximum wheel travel6061 aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated coilover shock bodies with 7/8 Inch shaftsFK Rod End bearings for extended longevity and minimal deflectionTubular UCAs for added strength, durability, and alignment correction for better drivabilityUCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint2.5 Aluminum Series remote reservoir RXT rear shocks feature corrosion resistant anodized aluminum shock bodies with 7/8 Inch shaftsICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20 Percent) while utilizing factory mounting locationMulti-Rate Leaf Springs with 3 user-adjustable spring rates for unique vehicle configurationsDetailsAdjustable Damping: NoBushings Included: YesCoil Quantity Front: 2.0Front Spring Rate 1: 650.0Front Spring Rate Type: LinearGrade Type: PerformanceLeaf Spring Leaf Quantity: 8.0Maximum Lift Front: 3.5 InchMaximum Lift Rear: 2.625 InchMinimum Lift Front: 0.0 InchMinimum Lift Rear: 1.875 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRear Spring Rate Type: VariableRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 20x9 With 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 With 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 With 4.75 Inch Backspace / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 191011 - Tubular UCA Billet Cap Set, 51045 - Toyota .25 Inch Bump Stop Spacer Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit

Features:

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• 2.5 Aluminum Series remote reservoir RXT rear shocks feature corrosion resistant anodized aluminum shock bodies with 7/8" shafts
• ICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
• Multi-Rate Leaf Springs with 3 user-adjustable spring rates for unique vehicle configurations

ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
