2005-2016 Ford F-250/F-350 Super Duty 4WD Ultimate Front End Kit Stage 5 Icon Vehicle Dynamics

Part #: K6215

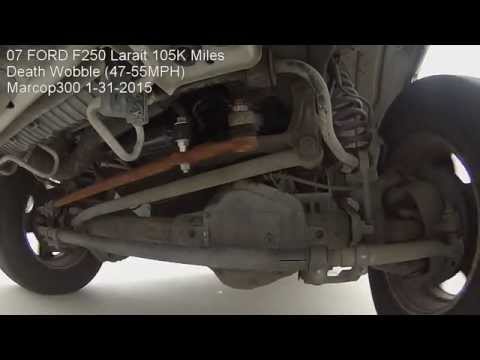

The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components. Partnering with our friends at Dynatrac, ICON is happy to pair our suspension components with Dynatrac HD BallJoints to provide a complete front-end suspension solution to solve common steering problems that can lead to loose steering feel, decreased stability, erratic tracking down the road, uneven tire wear, and even death-wobble.

Features:

• Full set of genuine Dynatrac front upper and lower ball joints
• Improves steering feel and vehicle control
• CNC machined, high-strength components
• Heat-treated, high-strength billet bodies with chromoly stems
• Heat-treated, precision-ground stainless-steel ball
• Sealed, greaseable design and PTFE coated wear points ensure long service life
• On-vehicle rebuildable design
• Adjustable track bar helps to free up bind during front suspension travel and articulation
• Heavy Duty PTFE-lined FK Rod End for maximum articulation and minimal deflection
• On-vehicle adjustable track bar for precise track alignment using ICON's double adjuster
• CNC machined and bent 1.625" X .250" wall 1026 DOM tubing
• Dual opposing stabilizer design eliminates the push/pull sensation associated with traditional stabilizers

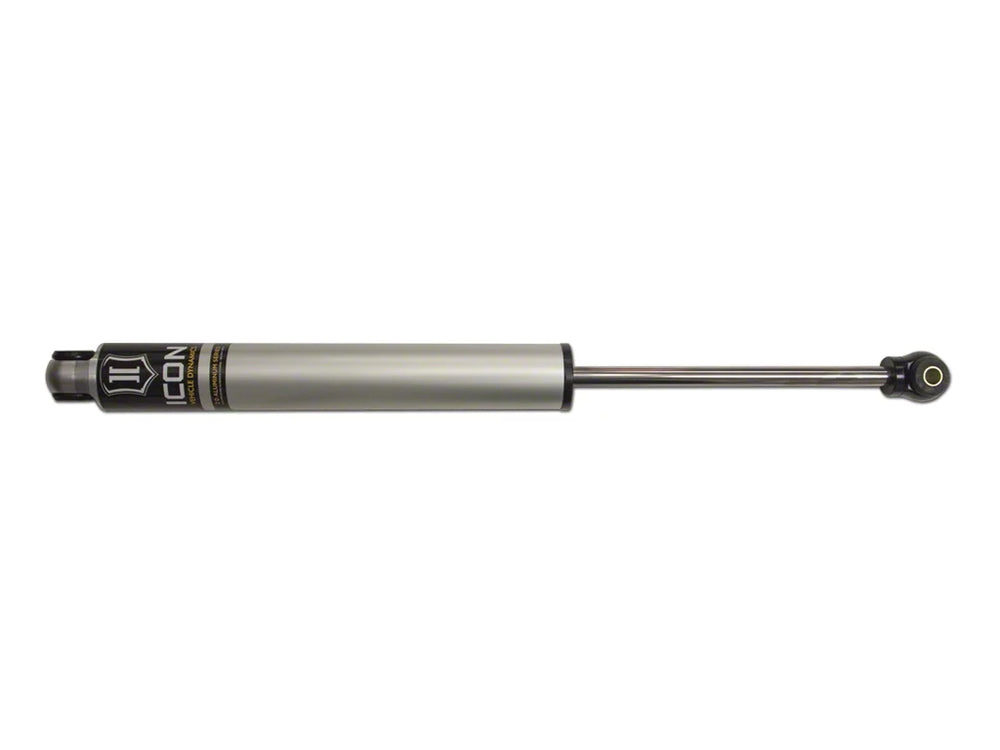

• Dual 2.0 Aluminum Series shocks offer increased steering damping over stock unit
• Provides symmetrical steering feel throughout input range
• CNC laser cut steel stabilizer bracket
• 6061 billet aluminum tie rod clamps, anodized for corrosion resistance
• Track bar ball joint is a direct press in replacement for OE axle or ICON track bars
• Greaseable design ensures long service life
• Sealed dust boot prevents contamination
• Improved strength and rigidity over OEM track bar ball joint
• Alignment cams add 2.3 degrees of caster and .5 degrees of camber over stock
• Ensures proper front-end alignment when installed in conjunction with compatible suspension lifts
• Zinc plated cams for corrosion resistance
• Includes new ball joint cotter pins

The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components.
