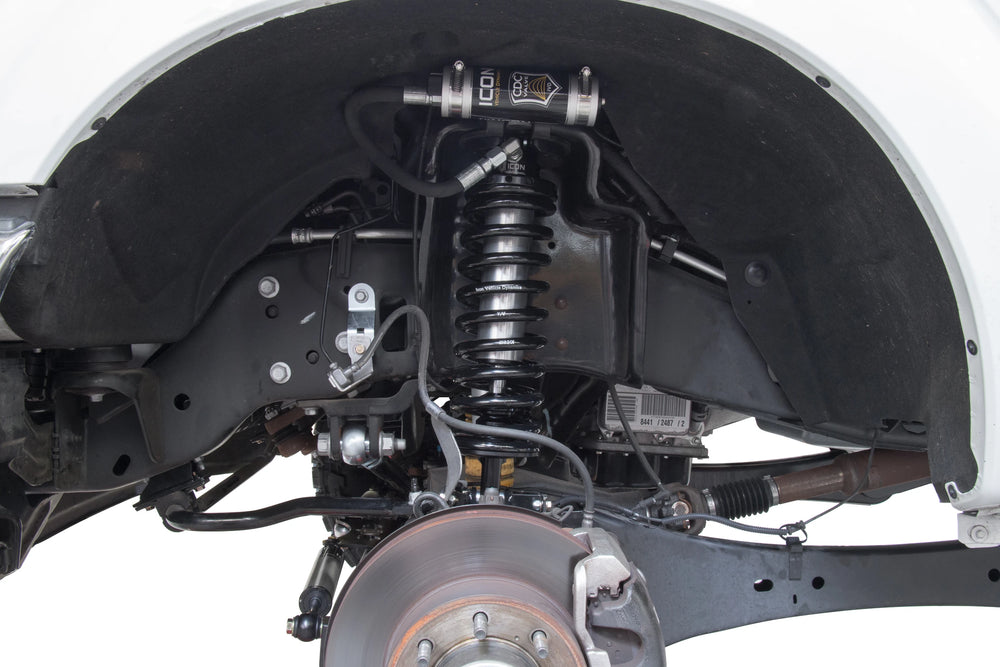

05-16 Ford F-250/F-350 2.5-3 Inch Stage 3 Coilover Conversion System Icon Vehicle Dynamics

Part #: K63103

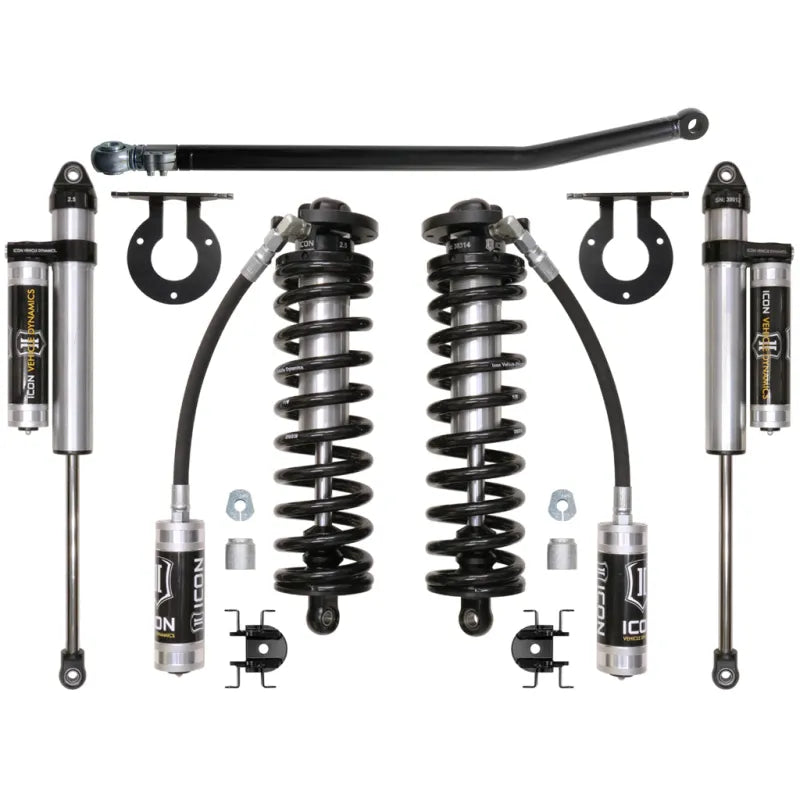

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment.The 2.5 Inch Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders that offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders.Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.Features and Benefits:FK Rod End bearings for extended longevity and minimal deflectionBolt-in system fits in OE coil bucket locationRide height adjustable coilovers (2.5-3 Inch)Decreased body roll and improved on and off-road ride dynamicsVehicle-specific shock valving provides unparalleled ride quality and controlShocks are fully rebuildable and revalveableCoilover conversion allows for addition of secondary shockCorrosion resistant CAD plated coilover shock body with 7/8 Inch shaftRear shocks feature anodized, one-piece impact extruded aluminum shock bodiesEibach coil springs guaranteed for life against sagging or breakageDetailsBushings Included: NoCoils Quantity Front: 2.0Grade Type: PerformanceMaximum Lift: 3.0 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 191014 - .25 Inch Collar Spanner Pin Wrench, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit

Features:

• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers (2.5-3")
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Rear shocks feature anodized, one-piece impact extruded aluminum shock bodies
• Eibach coil springs guaranteed for life against sagging or breakage

2005-2016 FORD F-250/F-350 2.5-3" LIFT STAGE 3 COILOVER CONVERSION SYSTEM
