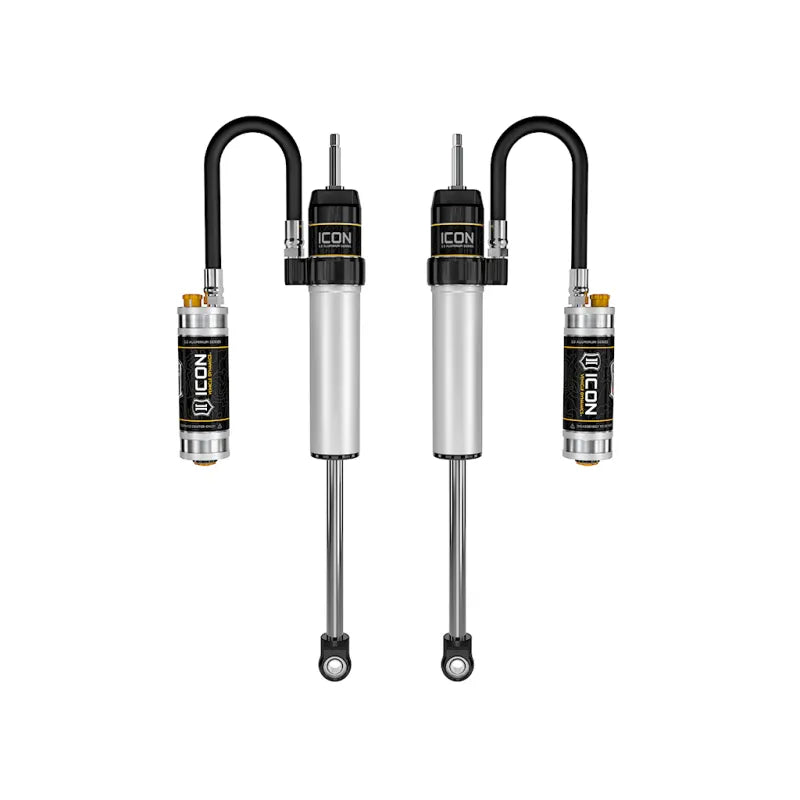

2005-2023 Toyota Tacoma 0-1.5 Inch Lift Rear 2.5 Vs Remote Reservoir W/ CDCV Shocks Pair Icon Vehicle Dynamics

Part #: 57805CP

ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable.For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.The ICON CDC Valve is an externally adjustable valve that restri cts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.Features and Benefits:6061 aircraft grade aluminum CNC machined componentsICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knobNitrogen charged monotube design with remote reservoirDouble-sealed Schrader caps reduce risk of damageOne-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finishICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compressionOne piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road7/8 Inch diameter induction hardened, chrome plated shock shaft100 Percent RebuildableRemote reservoir design improves heat dissipation to reduce shock fade during prolonged usePTFE lined spherical bearings and application specific mounting hardware100 Percent RevalveablePremium grade 5WT shock oil for consistent suspension damping along a wide temperature rangeDetailsAdjustable Damping: YesBoot Included: NoBore Diameter: 2.25Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: ManualDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EyeletMounting Hardware Included: YesService Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252003 - Seal Install Tool 2.5/3.0, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock Oil, 611007 - 9/16 Medium Duty Stem Bushing Kit, 257339 - 7/8 Shaft 13.25 Oal, 9.00 TravelShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder Of StemShock Absorber Rod End Measuring Point: Center Of EyeletTube Outside Diameter: 2.5Upper Mount Type: StemAdd On Part: 252012 - -4 To -10 Hose Shield Kit, 252008 - 2.5 X 13 Shock Boot Black (Pair)

Features:

• 6061 aircraft grade aluminum CNC machined components
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Nitrogen charged monotube design with remote reservoir
• Double-sealed Schrader caps reduce risk of damage
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON's internal Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• 100% Rebuildable
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 100% Revalveable
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

ICON 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
