2005-2023 Toyota Tacoma 0-2 Inch Lift Stage 3 Exp Suspension System Tubular UCA Icon Vehicle Dynamics

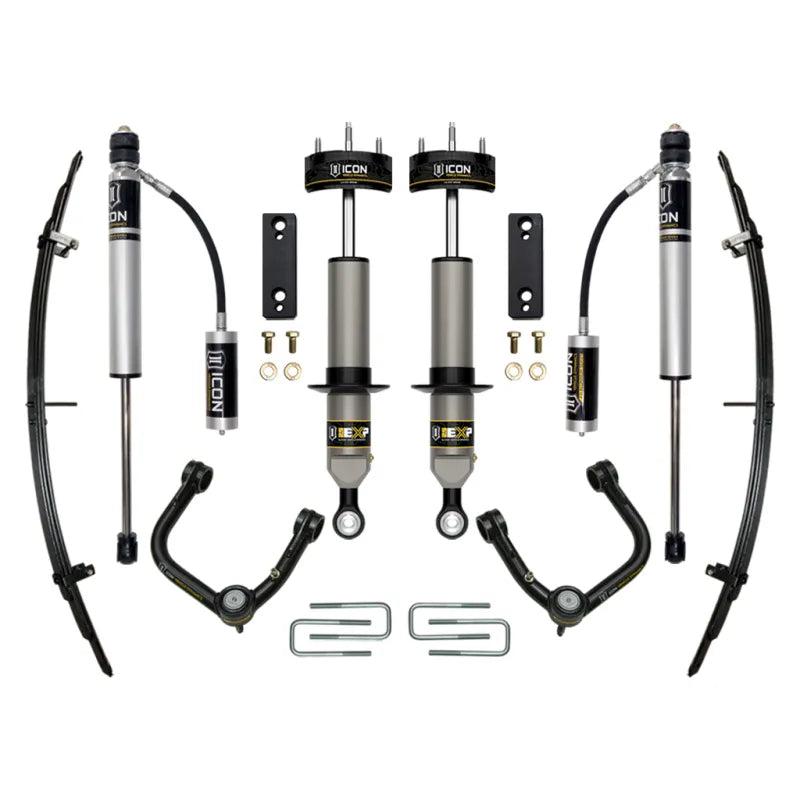

The ICON Vehicle Dynamics Stage 3 EXP suspension system for the 2005-2023 Toyota Tacoma provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 33" tires. This system features the innovative new 2.5 EXP series coilover shocks, sway bar relocation brackets, rear add-a-leaf, and 2.0 Aluminum Series nitrogen charged monotube shocks for the rear. The EXP Series front shock absorbers combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tacoma’s factory coil spring and other components. It provides 1-2” of suspension lift, custom-tuned performance and maximum travel in an economical package. The included sway bar relocation brackets help minimize sway bar link bind through the suspension travel range and offer sway bar clearance from the EXP coilovers. The ICON tubular upper control arm kit is designed to improve the overall performance with corrected front-end geometry, built-in additional caster, and improved suspension component clearance. It replaces the OE ball joint with the serviceable ICON Delta Joint for full bump and droop travel. The rear leaf spring Add-a-Leaf kit improves ride quality by softening the rear spring rate compared to stock, providing 1.5” of rear lift. Rounding out the system are V.S. 2.0 Aluminum Series rear shocks with remote reservoirs specially tailored for the 2005-2023 Tacoma.
