2005-2023 Toyota Tacoma 2.5 Vs Remote Reservoir W/ CDCV Coilover Kit Icon Vehicle Dynamics

Part #: 58730C

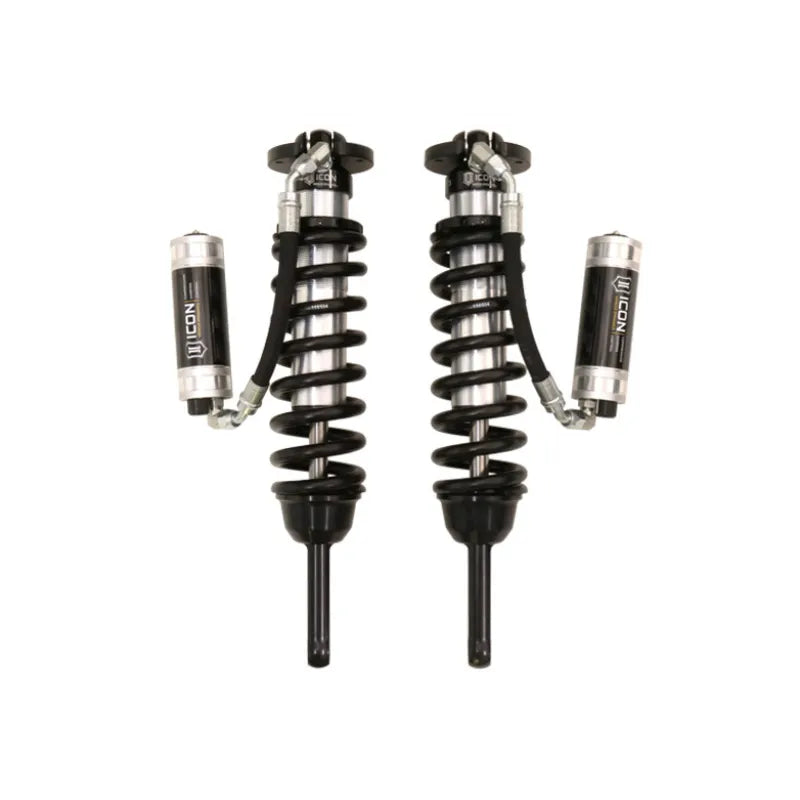

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5 Inch of lift height adjustability on 2005-2015 models or 0-2.75 Inch of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations.ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.Features and Benefits:Height-adjustable coilovers offer 0-3.5 Inch or 0-2.75 Inch of lift height adjustment depending on year modelVehicle specific tuned for superior shock damping and controlKit Includes Sway bar relocation bracketsKit also Includes Reservoir Mounting Brackets for Optimum Tire ClearanceCAD-plated threaded bodyBillet aluminum upper mount5/8 Inch PTFE-lined spherical bearingsCompletely re-buildableHose Length Optimized for Increased Fluid TransferExternal Reservoirs Ensures Maximum CoolingICON CDCV equipped for 10 settings of external compression damping adjustmentICON engineered coil springsDetailsMaterial: Steel, AluminumActive Or Passive Suspension: PassiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 17.42Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ManualDamping Type: OilDust Shield Included: NoExtended Length: 22.17Front Spring Rate: 650 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.5 InchMaximum Ride Height Raising Distance: 3.5Minimum Lift: 0.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 611067 - Tacoma/FJ Cruiser 4RNR Lower Co Brg/Spcr Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 611019 - Coilover Hardware Kit Pair, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0Shaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 4.76Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 51045 - Toyota .25 Inch Bump Stop Spacer Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit

Features:

• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Vehicle specific tuned for superior shock damping and control
• Kit Includes Sway bar relocation brackets
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• CAD-plated threaded body
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearings
• Completely re-buildable
• Hose Length Optimized for Increased Fluid Transfer
• External Reservoirs Ensures Maximum Cooling
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
