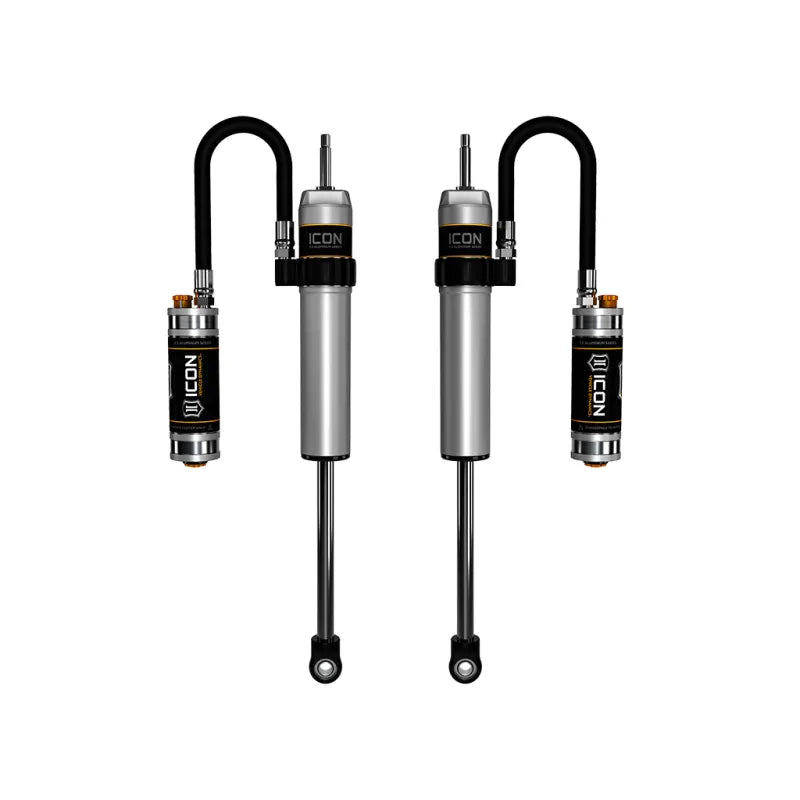

1991-2007 Toyota Land Cruiser 80/100 Series 4-6 Inch Lift Rear V.S. 2.5 Aluminum Series Shock Absorbers Remote Reservoir W/ CDCV Pair Icon Vehicle Dynamics

Part #: 57804CP

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.Features and Benefits:ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compressionNitrogen charged monotube design with piggyback reservoir6061 aircraft grade aluminum CNC machined componentsRemote reservoir design improves heat dissipation to reduce shock fade during prolonged use7/8 Inch diameter induction hardened, chrome plated shock shaftOne piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-roadOne-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finishICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knobPremium grade 5WT shock oil for consistent suspension damping along a wide temperature rangePTFE lined spherical bearings and application specific mounting hardware100 Percent Rebuildable100 Percent RevalveableDetailsActive Or Passive Suspension: PassiveAdjustable: NoAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NoBore Diameter: 2.25Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: ManualDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EyeletMounting Hardware Included: YesReservoir Type: RemoteService Parts: 611007 - 9/16 Medium Duty Stem Bushing Kit, 257341S - 7/8 Shaft 15.25 Oal, 11.00 Travel Short, 254100G - 1 Gallon Icon Performance Shock Oil, 252003 - Seal Install Tool 2.5/3.0, 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 191016 - 7.5 Inch Finned Resi Upgrade KitShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder Of StemShock Absorber Rod End Measuring Point: Center Of EyeletTube Outside Diameter: 2.5Upper Mount Type: StemValving Type: DigressiveAdd On Part: 252012 - -4 To -10 Hose Shield Kit

Features:

• ICON's internal Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• 7/8" diameter induction hardened, chrome plated shock shaft
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardware
• 100% Rebuildable
• 100% Revalveable

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.
