07-09 FJ Cruiser 03-09 4Runner 03-09 GX Ext Travel 2.5 VS IR Coilover Kit Icon Vehicle Dynamics

Part #: 58645

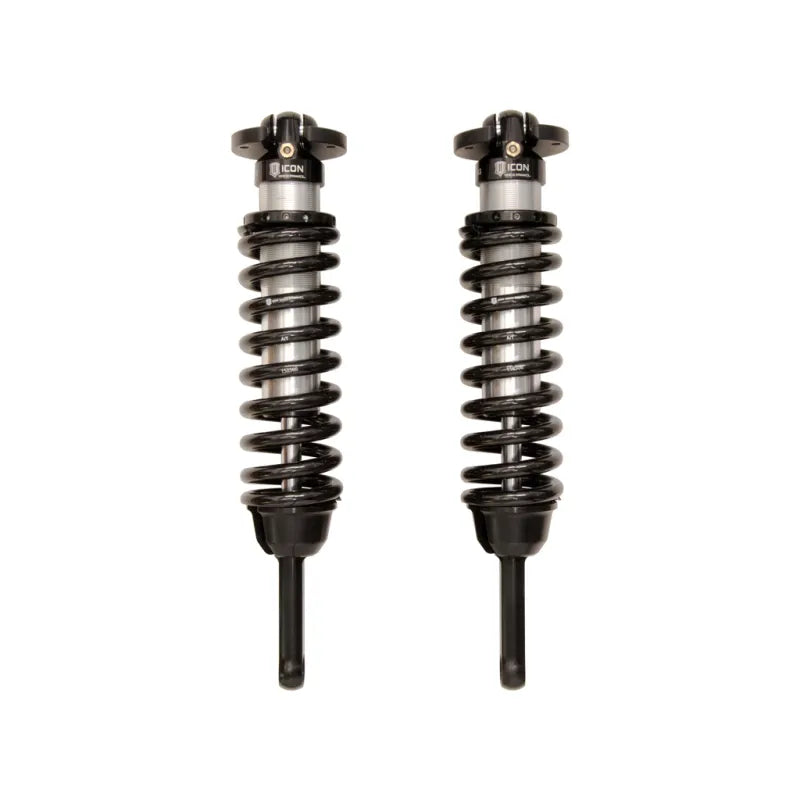

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100 Percent rebuildable and 100 Percent revalveable.Features and Benefits:Adjustable coilovers yield 0-3.5 Inch of front lift heightIncreased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road useExtended Travel length requires installation of aftermarket front upper control armsSuperior low speed control reduces body roll and increases on-road stabilityHigh quality ICON-engineered coil springs are guaranteed for life against sagging or breakageCorrosion resistant CAD plated shock body with 7/8 Inch shaftFK Rod End bearings provide extended longevity and minimal deflectionFully serviceable design allows for revalves, rebuilds, and an immeasurable service lifeBolt-in design makes for an easy install into OEM shock locationDetailsMaterial: AluminumActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 17.42Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Type: OilDust Shield Included: NoExtended Length: 22.57Front Spring Rate: 650 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.5 InchMaximum Ride Height Raising Distance: 3.5Minimum Lift: 0.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm OffsetRemote Reservoir: NoReservoir Style: InternalSelf Leveling: NoService Parts: 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 254100G - 1 Gallon Icon Performance Shock Oil, 252010 - 2.5 Ifp Rebuild Kit, 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 252004 - Economy Needle Charging Tool, 252003 - Seal Install Tool 2.5/3.0, 611019 - Coilover Hardware Kit Pair, 252001 - 2.5 Fixed Spanner Wrench, 611067 - Tacoma/FJ Cruiser 4Rnr Lower Co Brg/Spcr KitShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 5.16Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit

Features:

• Adjustable coilovers yield 0-3.5" of front lift height
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Extended Travel length requires installation of aftermarket front upper control arms
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK Rod End bearings provide extended longevity and minimal deflection
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

Beyond the added ground clearance, the dual rate design of ICON springs provides a softer initial rate for superb on-road comfort and a firmer secondary rate that delivers excellent bottoming resistance and superior off-road performance.
