2007-2021 Toyota Tundra 2008-2022 Toyota Sequoia V.S. 2.5 Series Coilover Kit Internal Reservoir Icon Vehicle Dynamics

Part #: 58650

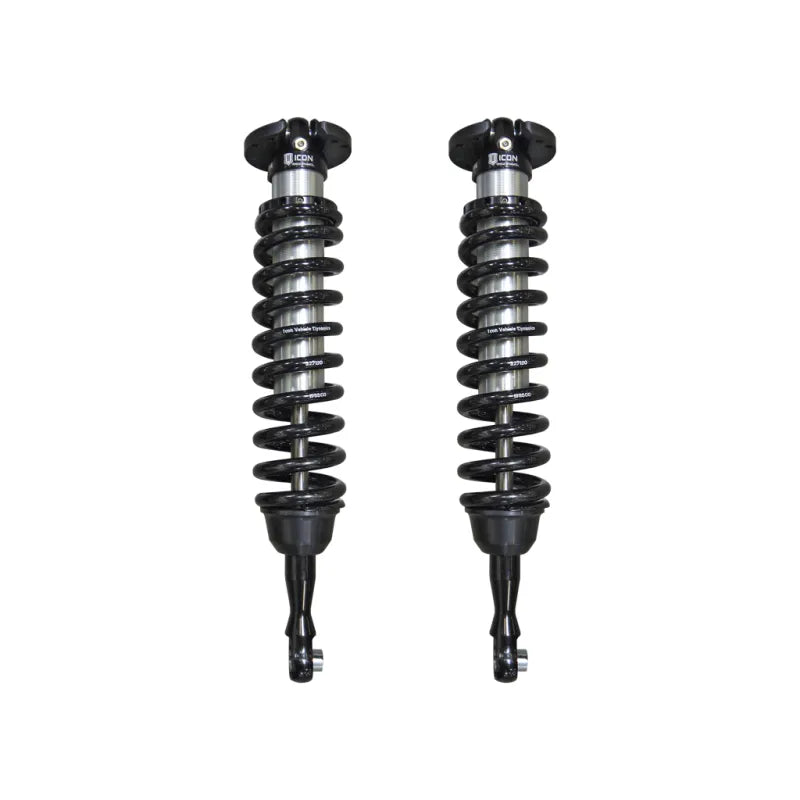

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. These adjustable coilovers allow up 1-3 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.ICON's Vehicle-specific shock length and valving, their large 2.5 Inch shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.Features and Benefits:Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stockVehicle specific shock length yields maximum wheel travelHeight-adjustable coilovers offer 1-3 Inch of lift height adjustment over stock2.5 Inch diameter shock bodies with internal reservoirs for consistent performanceICON engineered coil springs6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated shock bodies with 7/8 Inch diameter shaftsFK rod end bearings for extended longevity and minimal deflectionFully rebuildable and re-tunableDetailsMaterial: Aluminum, SteelActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 18.88Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Type: OilDust Shield Included: NoExtended Length: 25.43Front Spring Rate: 600 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.0 InchMaximum Ride Height Raising Distance: 3.0Minimum Lift: 1.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 6 Inch Backspace / 25mm Offset, Icon Alloys - 18x9 Inch W/ 6 Inch Backspace / 25mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm OffsetRemote Reservoir: NoReservoir Style: InternalSelf Leveling: NoService Parts: 611025 - 07 Tundra Co Hardware Kit Pair, 252010 - 2.5 Ifp Rebuild Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252004 - Economy Needle Charging Tool, 257337 - 7/8 Shaft 11.25 Oal, 7.00 Travel, 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0, 254100G - 1 Gallon Icon Performance Shock OilShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 6.55Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit, 51046 - 07-21 Tundra/08-21 Lc200/08-22 Sequoia Bump Stop Spacer Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5)

Features:

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length yields maximum wheel travel
• Height-adjustable coilovers offer 1-3" of lift height adjustment over stock
• 2.5" diameter shock bodies with internal reservoirs for consistent performance
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride quality across varying types of terrain.
