2007-2021 Toyota Tundra 2008-2022 Toyota Sequoia V.S. 2.5 Series Coilover Kit Remote Reservoir W CDCV Icon Vehicle Dynamics

Part #: 58750C

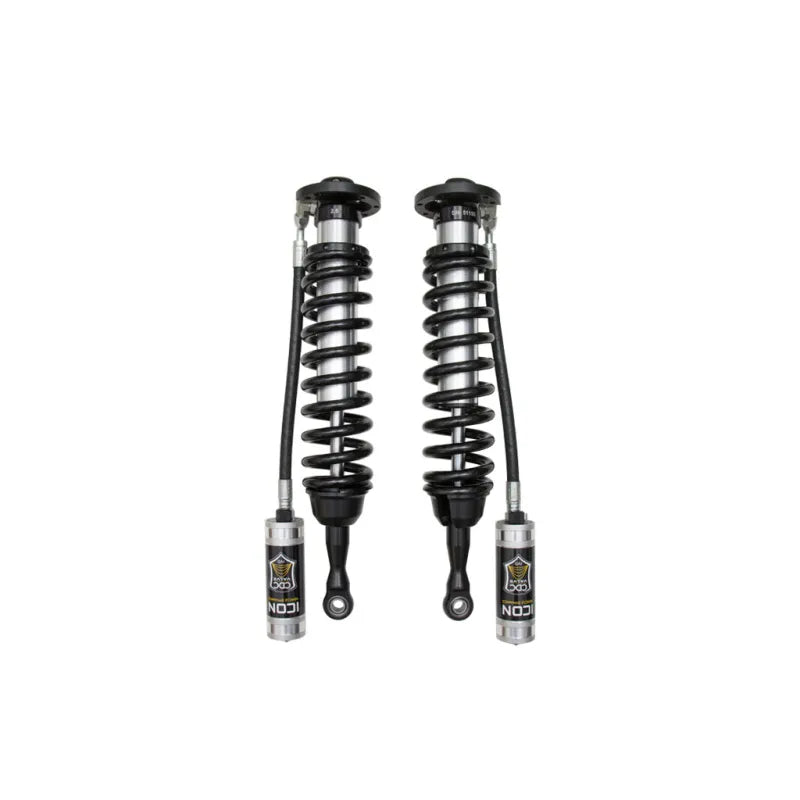

The ICON Vehicle Dynamics V.S. Series 2.5 Inch remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia.ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1-3 Inch of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard.When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tundra or Sequoia.Features and Benefits:Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stockVehicle specific shock length yields maximum wheel travelHeight-adjustable coilovers offer 1.-3 Inch of lift height adjustment over stock2.5 Inch diameter shock bodies with remote reservoirsRemote reservoirs maintain cooler operating temperatures during extended off-road useICON CDCV equipped for 10 settings of external compression damping adjustmentICON engineered coil springs6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated shock bodies with 7/8 Inch diameter shaftsFK rod end bearings for extended longevity and minimal deflectionFully rebuildable and re-tunableDetailsMaterial: Steel, AluminumActive Or Passive Suspension: PassiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 18.88Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ManualDamping Type: OilDust Shield Included: NoExtended Length: 25.43Front Spring Rate: 600 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.0 InchMaximum Ride Height Raising Distance: 3.0Minimum Lift: 1.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, Icon Alloys - 20x9 Inch W/ 6 Inch Backspace / 25mm Offset, Icon Alloys - 18x9 Inch W/ 6 Inch Backspace / 25mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 257337 - 7/8 Shaft 11.25 Oal, 7.00 Travel, 254100G - 1 Gallon Icon Performance Shock Oil, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 611025 - 07 Tundra Co Hardware Kit PairShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 6.55Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 51046 - 07-21 Tundra/08-21 Lc200/08-22 Sequoia Bump Stop Spacer Kit

Features:

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length yields maximum wheel travel
• Height-adjustable coilovers offer 1.-3" of lift height adjustment over stock
• 2.5" diameter shock bodies with remote reservoirs
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride quality across varying types of terrain.
