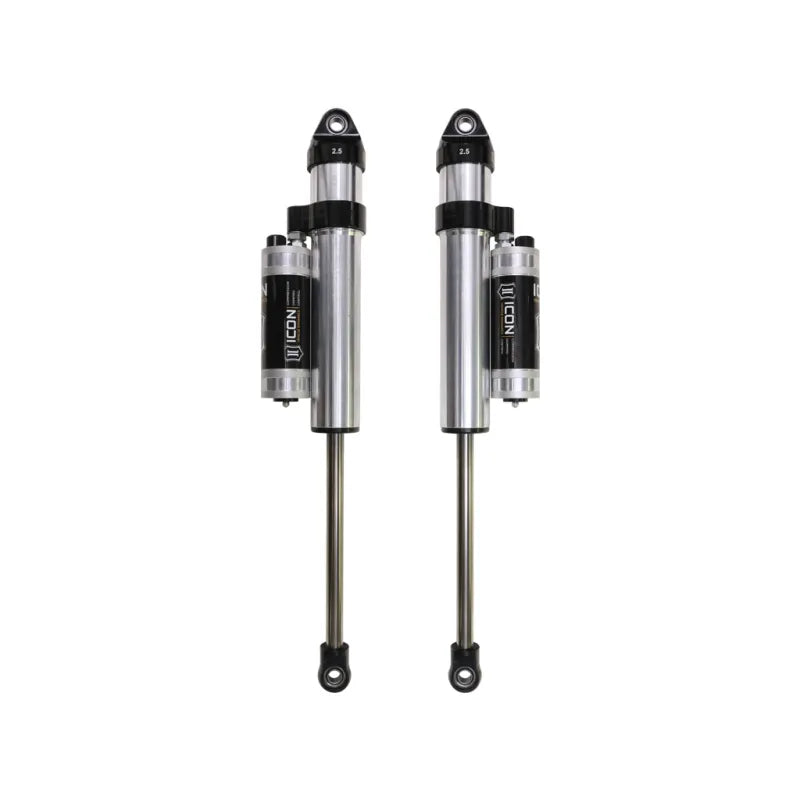

ICON 2007-21 Toyota Tundra, 0-3.5" Lift, Front, 2.5 VS Sec PB/CDCV Shocks, Pair

Part #: 59704CP-CB

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.Features and Benefits:Nitrogen charged monotube design with piggyback reservoirRemote reservoir design improves heat dissipation to reduce shock fade during prolonged useICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob100 Percent Rebuildable6061 aircraft grade aluminum CNC machined componentsOne piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road7/8 Inch diameter induction hardened, chrome plated shock shaftPremium grade 5WT shock oil for consistent suspension damping along a wide temperature rangeICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression100 Percent RevalveableCAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistancePTFE lined spherical bearings and application specific mounting hardwareDetailsAdjustable: YesBoot Included: NoBore Diameter: 2.25Cylinder Color: SilverCylinder Material: SteelDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EyeletMounting Hardware Included: YesService Parts: 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252003 - Seal Install Tool 2.5/3.0, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 257339 - 7/8 Shaft 13.25 Oal, 9.00 TravelShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center Of EyletShock Absorber Rod End Measuring Point: Center Of EyletTube Outside Diameter: 2.5Upper Mount Type: EyeletAdd On Part: 252008 - 2.5 X 13 Shock Boot Black (Pair)

Features:

• Nitrogen charged monotube design with piggyback reservoir
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• 100% Rebuildable
• 6061 aircraft grade aluminum CNC machined components
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• ICON's internal Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• 100% Revalveable
• CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
• PTFE lined spherical bearings and application specific mounting hardware

2007-2021 TUNDRA SECONDARY 2.5 VS PIGGYBACK CDCV SHOCK PAIR
