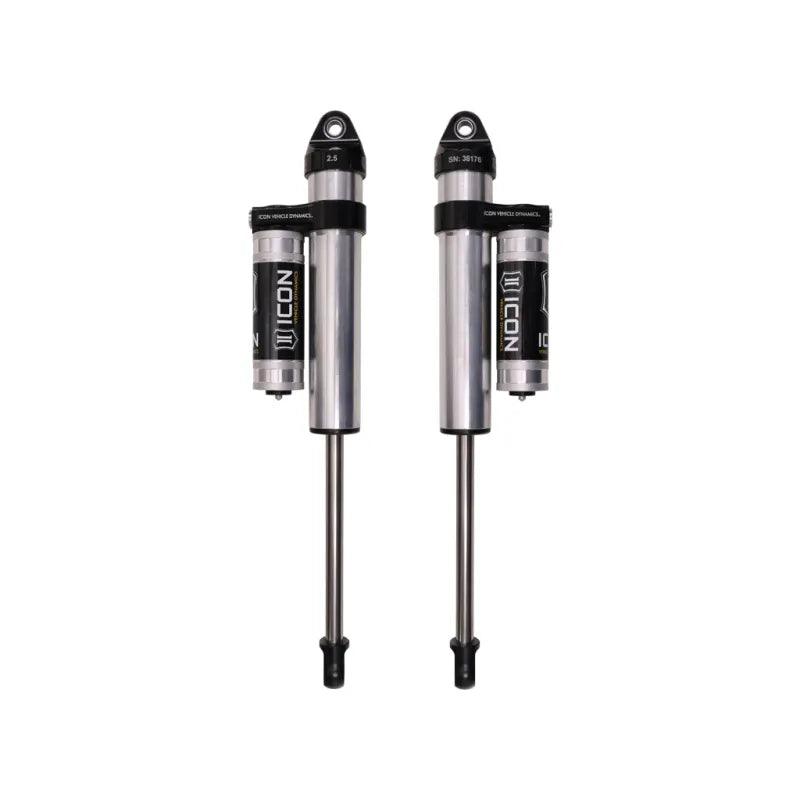

ICON 2007-21 Toyota Tundra, 6" Lift, Front, 2.5 VS Secondary PB Shocks, Pair

Part #: 59705P-CB

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.Features and Benefits:One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-roadPremium grade 5WT shock oil for consistent suspension damping along a wide temperature rangeICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compressionCAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance7/8 Inch diameter induction hardened, chrome plated shock shaftPTFE lined spherical bearings and application specific mounting hardwareNitrogen charged monotube design with piggyback reservoirRemote reservoir design improves heat dissipation to reduce shock fade during prolonged useAll ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)6061 aircraft grade aluminum CNC machined components100 Percent Rebuildable100 Percent RevalveableDetailsAdjustable: NoBoot Included: NoBore Diameter: 2.25Cylinder Color: SilverCylinder Material: SteelDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EyeletMounting Hardware Included: YesService Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild KitShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center Of EyletShock Absorber Rod End Measuring Point: Center Of EyletTube Outside Diameter: 2.5Upper Mount Type: Eyelet

Features:

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• ICON's internal Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• Nitrogen charged monotube design with piggyback reservoir
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

2007-2021 TOYOTA TUNDRA 6" LIFT SECONDARY 2.5 VS PIGGYBACK SHOCK PAIR
