07-21 Tundra Rear Hyd Bump Stop Kit Icon Vehicle Dynamics

Part #: 56108

While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick.Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won't negatively affect articulation.Features and Benefits:This hydraulic bump stop system was developed as an OEM replacement, making installation a simple and straightforward bolt-on affair. With no major cutting, welding, or fabrication required you have the option to return the vehicle back to its stock form. The factory rubber bump stops have a limited energy absorption capacity and a rapid release of this energy upon rebound Inch This translates into a harsh ride and poor handling in rough terrain. ICON hydraulic bump stops absorb and release this energy in a much more controlled manner due to the digressive rebound piston valving, resulting in predictable handling and vehicle dynamics.2.5 Inch travel bump stop reduces rear end Inchkick' and improves overall performancePosition sensitive technology exponentially increases bottom-out resistanceVehicle specific bump stop tune to provide smooth engagement and best ride qualityDirect bolt-in to OEM bump stop location makes for an easy and straightforward installFully reversible to factory configuration with no bed cutting requiredHeavy duty 1 AAAA Inch CNC machined nitro steel shaftMulti stage CAD plated body for maximum corrosion resistanceDouble sealed high pressure Schrader valveOperating range of 50 Inch 250 PSIReplaceable noise reducing striker padFully serviceableInchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durabilityDetailsColor: BlackAttachment Type: Bolt OnBumper Material: HydraulicGrade Type: PerformanceLength: 2,5Service Parts: 202004 - 2.0 Air Bump Rebuild Kit

Features:

• 2.5" travel bump stop reduces rear end kick' and improves overall performance
• Position sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• Fully reversible to factory configuration with no bed cutting required
• Heavy duty 1 " CNC machined nitro steel shaft
• Multi stage CAD plated body for maximum corrosion resistance
• Double sealed high pressure Schrader valve
• Operating range of 50 - 250 PSI
• Replaceable noise reducing striker pad
• Fully serviceable
• ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability

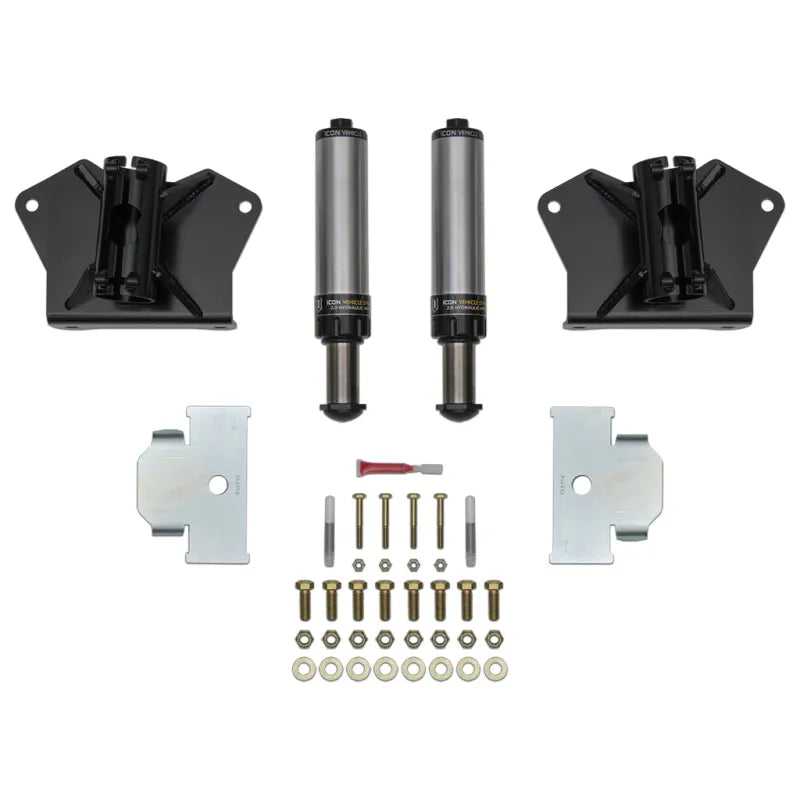

2007-2021 TOYOTA TUNDRA REAR HYDRAULIC BUMP STOP SYSTEM
