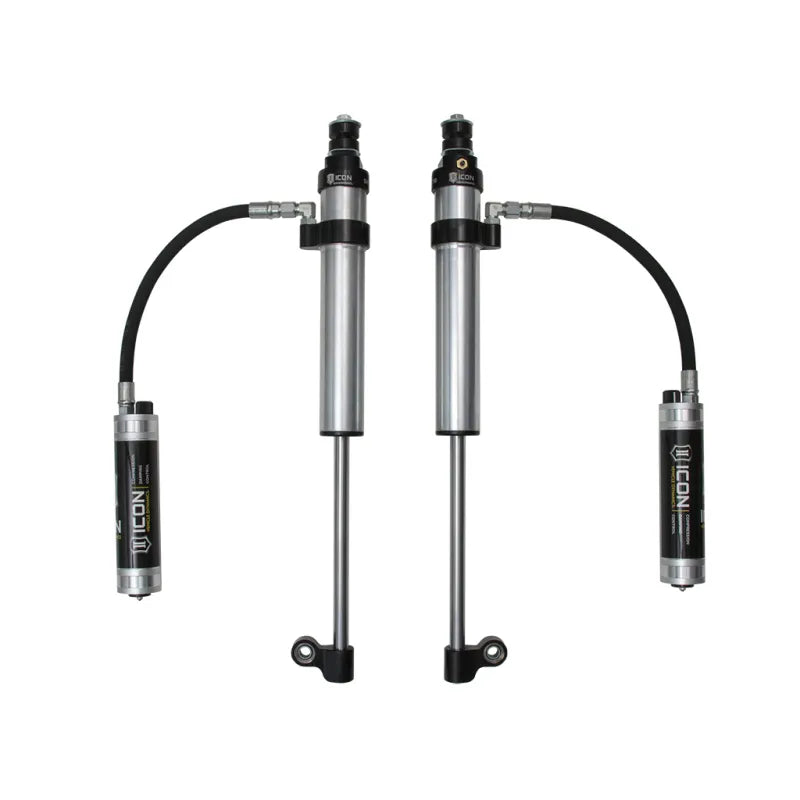

ICON 2007-21 Toyota Tundra, Rear, RXT 2.5 VS Remote Reservoir/CDCV Shocks, Pair

Part #: 57823CP

ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable.For piggyback and specific remote reservoir applications, ICON's unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal InchBump Zone Inch that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity.The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.Features and Benefits:6061 aircraft grade aluminum CNC machined componentsICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knobNitrogen charged monotube design with piggyback reservoirOne-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finishICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compressionOne piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road7/8 Inch diameter induction hardened, chrome plated shock shaft100 Percent RebuildableRemote reservoir design improves heat dissipation to reduce shock fade during prolonged useDouble-sealed Schrader caps reduce risk of damagePTFE lined spherical bearings and application specific mounting hardware100 Percent RevalveablePremium grade 5WT shock oil for consistent suspension damping along a wide temperature rangeDetailsAdjustable: YesBoot Included: NoBore Diameter: 2.25Cylinder Color: SilverCylinder Material: AluminumDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EyeletMounting Hardware Included: YesService Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 191015 - 10 Inch Finned Resi Upgrade Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252003 - Seal Install Tool 2.5/3.0, 611008 - 9/16 RXT Heavy Duty Stem Bushing Kit, 257342 - 7/8 Shaft 16.85 Oal, 12.00 TravelShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center Of EyletShock Absorber Rod End Measuring Point: Center Of EyletTube Outside Diameter: 2.5Upper Mount Type: StemAdd On Part: 252012 - -4 To -10 Hose Shield Kit

Features:

• 6061 aircraft grade aluminum CNC machined components
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Nitrogen charged monotube design with piggyback reservoir
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON's internal Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• 100% Rebuildable
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Double-sealed Schrader caps reduce risk of damage
• PTFE lined spherical bearings and application specific mounting hardware
• 100% Revalveable
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

2007-2021 TOYOTA TUNDRA RXT REAR 2.5 VS REMORE RESERVOIR WITH CDCV SHOCK PAIR
