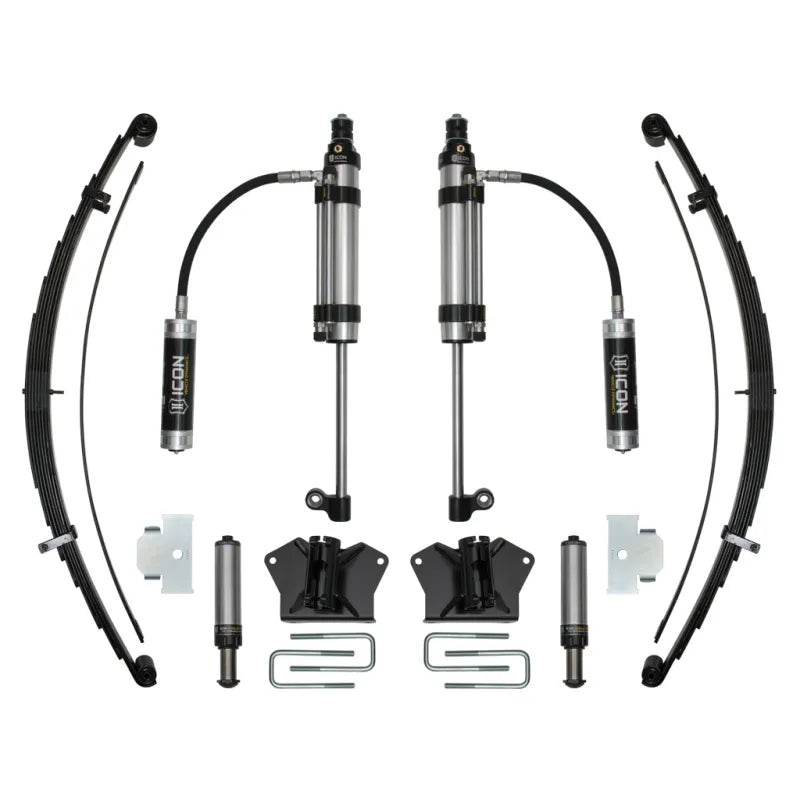

ICON 2007-21 Toyota Tundra, Stage 3 RTX Suspension System

Part #: K53157

The 2007-2021 Toyota Tundra is a very capable and versatile truck with features that make it suitable for use as everything from daily driver, to tow rig, to adventure vehicle and everything in between. From the brutal deserts of the Southwest to the wooded trails of the East coast ICON suspension systems have been put to the test and performed flawlessly for this popular Toyota.Over the span of hundreds of hours in the shop and over a thousand miles in the dirt, ICON Vehicle Dynamics' engineers have pushed this vehicle to extremes in order to develop the most sophisticated suspension components on the market. Unable to leave Inchwell-enough Inch alone, ICON is aiming to raise the bar in Tundra performance with the introduction of the RXT Rear Suspension System.Features and Benefits:Through an accelerated testing process dubbed the InchICON1K Inch R&D program, ICON has spent over a year pushing the Tundra to off-road extremes to identify limiting factors in OE components and further extrapolate performance out of this vehicle. In a push to provide unparalleled ride quality and vehicle dynamics for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System is a combination of an all-new ICON multi-rate leaf spring, a hydraulic rear bump stop kit, and three RXT-specific 2.5 Aluminum Series rear shock options. Installation of this system replaces the aforementioned Inchlimiting factors Inch and completely redefines the potential of the 2007-2021 Toyota Tundra with a 20 Percent increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurationsICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durabilityICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistanceICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfortICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock without sacrificing up-travel (up to 20 Percent over stock)ICON RXT Multi-Rate Leaf Spring: InchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durabilityICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy installICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting locationICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volumeICON RXT Rear Shock: Omega Series two-tube bypass allows for 28 settings of compression and rebound damping adjustmentICON RXT Rear Shock: 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finishICON RXT Rear Shock: 10 Inch aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increasesICON RXT Rear Shock: Shocks are fully rebuildable and revalveableICON RXT Rear Shock: Simple and straightforward installationICON RXT Rear Shock: InchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durabilityICON Hydraulic Rear Bump Stop Kit: 2.5 Inch travel bump stop reduces rear end Inchkick' and improves overall performanceICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistanceICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride qualityICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward installICON Hydraulic Rear Bump Stop Kit: Heavy duty 1.25 Inch CNC machined nitro steel shaftICON Hydraulic Rear Bump Stop Kit: CAD plated body for maximum corrosion resistanceICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valveICON Hydraulic Rear Bump Stop Kit: Operating range of 50-250 PSIICON Hydraulic Rear Bump Stop Kit: Replaceable noise-reducing striker padICON Hydraulic Rear Bump Stop Kit: Fully serviceableICON Hydraulic Rear Bump Stop Kit: InchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durabilityDetailsBushings Included: YesGrade Type: PerformanceLeaf Spring Leaf Quantity: 8.0Maximum Lift: 4.0 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset, Icon Alloys - 18x9 Inch W/ 6 Inch Backspace / 25mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 252012 - -4 To -10 Hose Shield Kit

Features:

• ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
• ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
• ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
• ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
• ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock without sacrificing up-travel (up to 20% over stock)
• ICON RXT Multi-Rate Leaf Spring: ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install
• ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
• ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
• ICON RXT Rear Shock: Omega Series two-tube bypass allows for 28 settings of compression and rebound damping adjustment
• ICON RXT Rear Shock: 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• ICON RXT Rear Shock: 10" aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
• ICON RXT Rear Shock: Simple and straightforward installation
• ICON RXT Rear Shock: ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON Hydraulic Rear Bump Stop Kit: 2.5" travel bump stop reduces rear end kick' and improves overall performance
• ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
• ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1.25" CNC machined nitro steel shaft
• ICON Hydraulic Rear Bump Stop Kit: CAD plated body for maximum corrosion resistance
• ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve
• ICON Hydraulic Rear Bump Stop Kit: Operating range of 50-250 PSI
• ICON Hydraulic Rear Bump Stop Kit: Replaceable noise-reducing striker pad
• ICON Hydraulic Rear Bump Stop Kit: Fully serviceable
• ICON Hydraulic Rear Bump Stop Kit: ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability

2007-2021 TOYOTA TUNDRA RXT STAGE 3 SYSTEM
