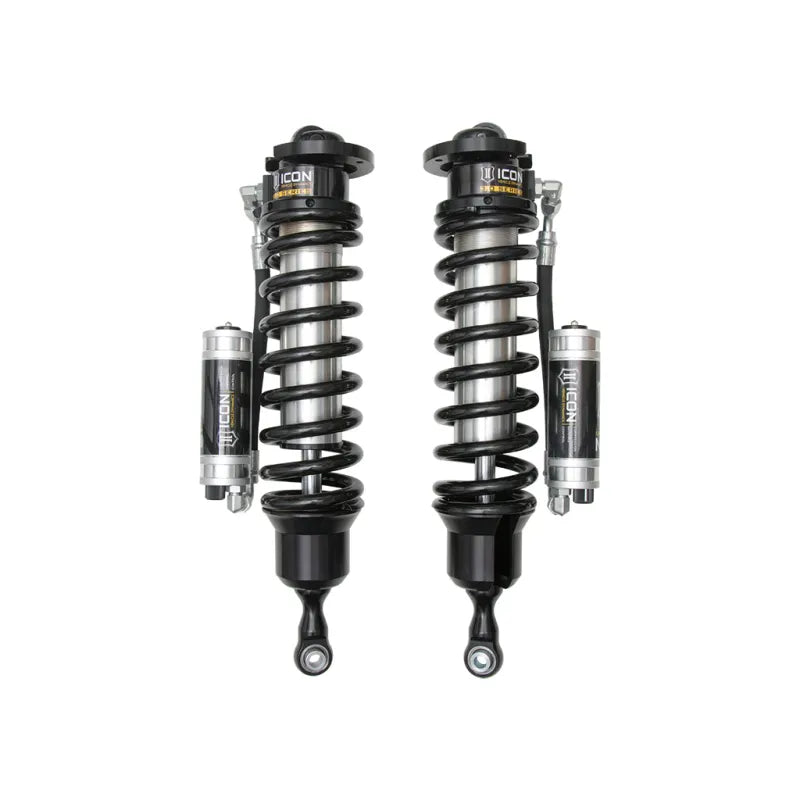

ICON 2008+ Toyota Land Cruiser 200 3.0 Series Shocks VS RR CDCV Coilover Kit

Part #: 58765

While ICON's 2.5 Series coilovers are an excellent choice for drivers looking for a great all-around performance upgrade, there are a select few Land Cruiser owners seeking to drive their vehicles in a manner and in terrain that beckons for more. The ICON Vehicle Dynamics 2008-UP Land Cruiser 3.0 Series Coilover Kit was designed to take the off-road capability of the truck to new levels by increasing wheel travel and significantly improving the damping ability of the front shocks.Features and Benefits:Compared to the 2.5 Inch diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50 Percent in the ride zone, and 100 Percent in the InchBump Zone Inch. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40 Percent of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.These 3.0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair. Built in ride height adjustability yields 2.25-3.5 Inch of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components such as Eibach coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue.Significant increase in damping ability for excellent performance in extreme off-road conditionsIncreased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-roadAdjustable coilovers provide 2.25-3.5 Inch of front lift heightDirect bolt-in to OEM shock location makes for an easy installICON's multi-stage, tuneable hydraulic InchBump Zone Inch exponentially increases bottom-out resistance in the last 40 Percent of compression travelEasy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations10 Inch aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increaseHigh quality ICON-engineered Eibach springs offer increased travel and performancePTFE lined COM12 spherical bearings ensure maximum strength and durabilityHeavy duty 1 Inch CNC machined shock shaftsMulti stage CAD plated shock body with hard anodized piston and top capFully serviceableInchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durabilityDetailsMaterial: SteelActive Or Passive Suspension: PassiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 3 InchCoil Over Springs Included: YesCompressed Length: 18.63Cylinder Color: GrayCylinder Finish: Ceramic CoatedCylinder Material: SteelDamping Adjustment Type: ManualDamping Type: OilDust Shield Included: NoExtended Length: 24.79Front Spring Rate: 600 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.5 InchMaximum Ride Height Raising Distance: 3.5Minimum Lift: 2.25 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 34 Inch X 10.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 6 Inch Backspace / 25mm Offset, Icon Alloys - 18x9 Inch W/ 6 Inch Backspace / 25mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252003 - Seal Install Tool 2.5/3.0, 302005 - 3.0 Icon Rebuild Kit (All), 611025 - 07 Tundra Co Hardware Kit Pair, 254100G - 1 Gallon Icon Performance Shock OilShaft Diameter: 1.0Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 6.17Upper Mount Type: Mounting PlateValving Type: Compression: Linear, Rebound: DigressiveAdd On Part: 198001 - Billet Spanner Wrench Kit, 191010 - Icon Raptor 3.0 Coil Wrap W/Logo Pair, 252012 - -4 To -10 Hose Shield Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit

Features:

• Significant increase in damping ability for excellent performance in extreme off-road conditions
• Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
• Adjustable coilovers provide 2.25-3.5" of front lift height
• Direct bolt-in to OEM shock location makes for an easy install
• ICON's multi-stage, tuneable hydraulic Bump Zone" exponentially increases bottom-out resistance in the last 40% of compression travel
• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
• 10" aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
• High quality ICON-engineered Eibach springs offer increased travel and performance
• PTFE lined COM12 spherical bearings ensure maximum strength and durability
• Heavy duty 1" CNC machined shock shafts
• Multi stage CAD plated shock body with hard anodized piston and top cap
• Fully serviceable
• ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability

2008-UP LC 200 3.0 VS REMOTE RESERVOIR CDCV COILOVER KIT
