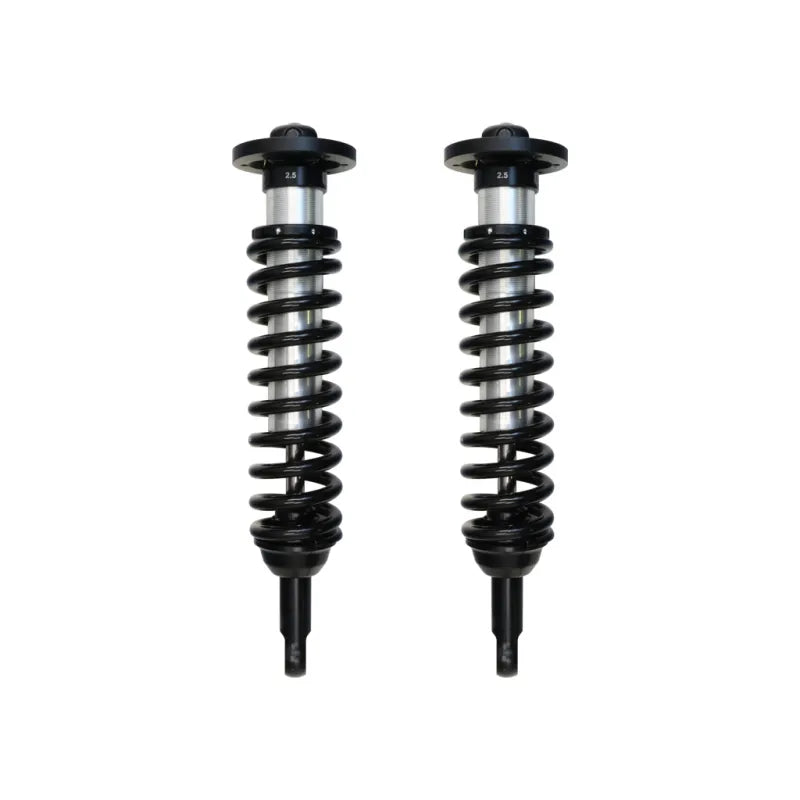

2009-2013 Ford F-150 4WD 0-2.63 Inch Lift Front V.S. 2.5 Series Coilover Kit Internal Reservoir Icon Vehicle Dynamics

Part #: 91700

ICON Vehicle Dynamics V.S. Series 2.5 Inch coil-over shocks are an incredible upgrade for the front end of 2009-2013 Ford F-150 4WD trucks.ICON's Vehicle-specific valving provide a sport tuned feel on and off-road while 0-3 Inch lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.Features and Benefits:Increased wheel travel and ride quality over stockVehicle specific tuned for superior shock damping and controlAdjustable 0-3 Inch lift heightICON engineered Eibach Springs6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated shock body with 7/8 polished nitro steel shaftFK rod end bearings for extended longevity and minimal deflection100 Percent Bolt-on - no drilling,cutting or welding necessary for installationDetailsMaterial: Steel, AluminumActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 17.85Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Type: OilDust Shield Included: NoExtended Length: 23.21Front Spring Rate: 600 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: Bar PinMaximum Lift: 2.63 InchMaximum Ride Height Raising Distance: 2.63Minimum Lift: 0.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm OffsetRemote Reservoir: NoReservoir Style: InternalSelf Leveling: NoService Parts: 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252004 - Economy Needle Charging Tool, 252010 - 2.5 Ifp Rebuild Kit, 611019 - Coilover Hardware Kit Pair, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 254100G - 1 Gallon Icon Performance Shock OilShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Flat On Bar PinSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 5.37Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 96518 - 09-24 F150 2/4Wd 04-08 F150 4Wd Rear Vs 2.0 Ir, 198001 - Billet Spanner Wrench Kit, 97720P - 09-24 F150 2/4Wd 04-08 F150 4Wd Rear 2.5 Vs Pb Pair, 98505Dj - 09-20 F150/14-20 Expedition Billet UCA Dj Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 98500Dj - 04-20 F150/14-Up Expedition Tubular UCA Dj Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5)

Features:

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable 0-3" lift height
• ICON engineered Eibach Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8 polished nitro steel shaft
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on - no drilling,cutting or welding necessary for installation

ICON 2.5 Series internal reservoir coilovers are an incredible upgrade for the Ford F150. Vehicle-specific valving provides a sport tuned feel while offering 0-2.63" of lift height for use of larger, more aggressive wheel and tire combos.
