09-18 RAM 1500 4WD .75-2.5 Inch Stage 3 Suspension System Icon Vehicle Dynamics

Part #: K213003

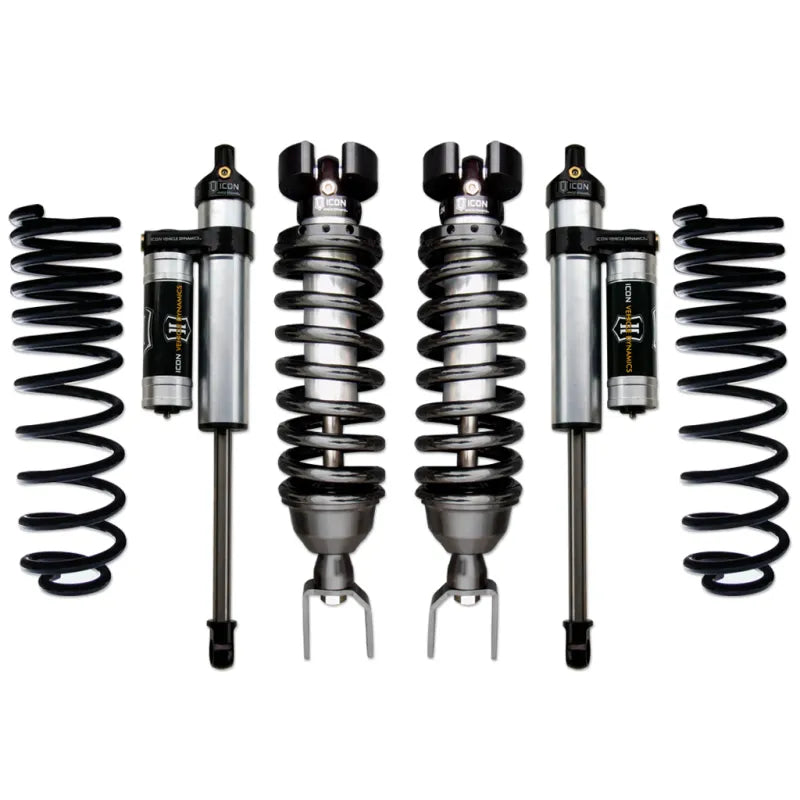

ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.The Stage 3 system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from .75-2.5 Inch of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations.ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.Features and Benefits:Increased wheel travel and ride quality over stock with no change in towing capacityVehicle specific tuned front and rear shocks for superior shock damping and controlAdjustable coilovers from .75-2.5 Inch of lift height6061 Aircraft grade aluminum CNC machined componentsFK rod end bearings for extended longevity and minimal deflectionCorrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish100 Percent Bolt-on system - no drilling, cutting, or welding necessary for installDetailsBushings Included: YesCoil Spring End 1 Type: OpenCoil Spring End 2 Type: OpenCoils Quantity Front: 2.0Coils Quantity Rear: 2.0Grade Type: PerformanceMaximum Lift: 2.5 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Bs / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit

Features:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from .75-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

2009-2018 RAM 1500 4WD .75-2.5" LIFT STAGE 3 SUSPENSION SYSTEM
