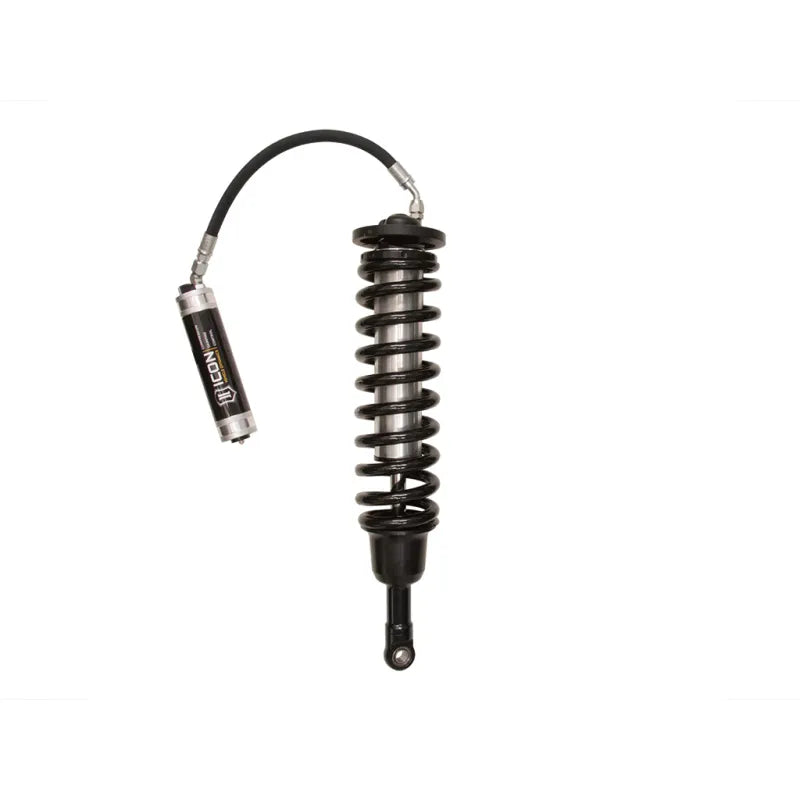

ICON 10-14 Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit - Driver Side

Part #: 95000L

ICON Vehicle Dynamics is known for its extensive research and development put into every product, the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard. The Ford SVT Raptor was the first production truck, designed and built, to bridge the gap between a standard street pickup truck and an off-road pre-runner.ICON Vehicle Dynamics new 3.0 Performance Coil-Over Shocks for the SVT Raptor were rigorously tested both on- and off-road for several months to enhance the overall performance and ride quality.Features and Benefits:The engineers at ICON Vehicle Dynamics took a different approach to position sensitive performance in our 3.0 front coil over shock. Instead of bypassing a small internal piston at the cost of poor control, road holding, and cornering like a traditional internal position sensitive shock, our shock starts with a true 3 Inch main piston that has robust features such as digressive rebound and flutter stack compression. This combination produces outstanding control, great response, and unparalleled ride performance. To achieve even more control for extreme off-road use, we added an additional internal hydraulic system (much like an external mounted hydraulic bumpstop) that produces the extreme forces required during the last 40 Percent of travel to achieve maximum bottom out control. These multiple stages of compression and rebound have been tuned independently to maximize overall performance of the Ford SVT Raptor front suspension. For owners who wish to optimize the ride specific to his or her liking, the front coil-over shocks are equipped with an external, Easy to Adjust Compression Damping Control Valve, that is effective for the entire stroke of the shock. This compression adjustment valve offers you 10 high resolution settings, each bringing a true feel difference from soft to firm.3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over ShockInternal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40 Percent of TravelEasy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of TerrainsDirect Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protectionNitrogen Charged 6063-T832 Aluminum 10 Inch Remote Reservoirs that are Precision CNC Honed & Hard AnodizedAdjustable Ride Height from 1 Inch 3.5 Inch of LiftICON Engineered Eibach 3 5/8 Inch ID High Quality Chrome Silicon Steel Springs that offer increased travel and performanceMulti Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod EndsCom 12 PTFE Lined Bearings Ensure Maximum Strength and DurabilityOversized 1 Inch Heavy Duty CNC Machined Shock ShaftsExtended Droop Travel and Increased Overall Performance on and off roadDetailsMaterial: Aluminum, SteelActive Or Passive Suspension: PassiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 3 InchCoil Over Springs Included: YesCoil Spring Included: YesCoil Spring InsulatorS Included: NoCompressed Length: 20.24Cylinder Color: GrayCylinder Finish: Ceramic CoatedCylinder Material: SteelCylinder Outside Diameter: 3.0Damping Adjustment Type: ManualDamping Type: OilDust Shield Included: NoExtended Length: 27.45Gas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.5 InchMaximum Ride Height Raising Distance: 3.5Minimum Lift: 1.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 252003 - Seal Install Tool 2.5/3.0, 302005 - 3.0 Icon Rebuild Kit (All), 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 611019 - Coilover Hardware Kit PairShaft Diameter: 1.0Shaft Material: ChromeShock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate: 600.0Spring Rate Type: LinearTravel Length: 7.21Upper Mount Type: Mounting PlateValving Type: Compression: Linear, Rebound: DigressiveAdd On Part: 198001 - Billet Spanner Wrench Kit, 191010 - Icon Raptor 3.0 Coil Wrap W/Logo Pair, 198000 - 2 Pin Coilover Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit

Features:

• 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over Shock
• Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
• Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
• Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
• Nitrogen Charged 6063-T832 Aluminum 10" Remote Reservoirs that are Precision CNC Honed & Hard Anodized
• Adjustable Ride Height from 1 - 3.5" of Lift
• ICON Engineered Eibach 3 5/8" ID High Quality Chrome Silicon Steel Springs that offer increased travel and performance
• Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
• Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
• Oversized 1" Heavy Duty CNC Machined Shock Shafts
• Extended Droop Travel and Increased Overall Performance on and off road

2010-2014 FORD RAPTOR FRONT 3.0 VS COILOVER REMOTE RESERVOIR CDCV DRIVER SIDE
