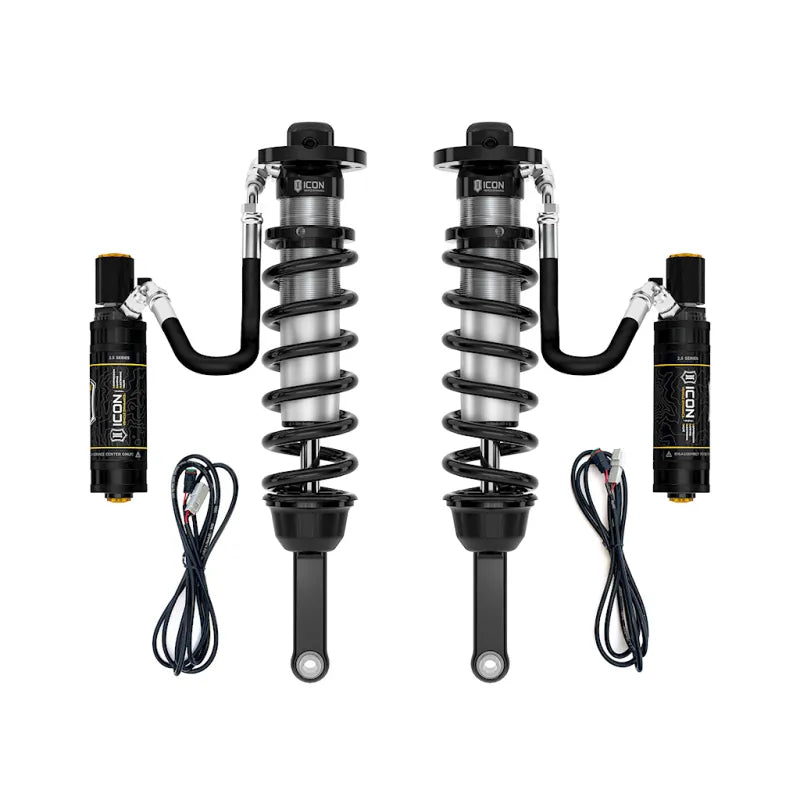

2010-2024 Toyota 4Runner 0-3.5 Inch Lift V.S. 2.5 Series Extended Travel Coilover Kit Remote Reservoir W/ CDEV 700 Lbs/In Coils Icon Vehicle Dynamics

Part #: 58747E-700

The ICON Vehicle Dynamics V.S. Series 2.5 Inch remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner.ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5 Inch of lift height adjustability for use of larger, more aggressive wheel and tire combinations. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches.ICON's larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.Features and Benefits:Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)Increased wheel travel and ride quality over stockVehicle specific tuned for superior shock damping and controlAdjustable for 0-3.5 Inch of lift height over stockICON engineered coil springs with 700 lbs/in spring rateExternal reservoirs to attain cooler operating temperatures during extended off-road use6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated shock bodies with 7/8 Inch induction hardened, chrome plated shaftsFK rod end bearings for extended longevity and minimal deflectionBolt-on kit - no cutting or welding necessary for installation100 Percent Rebuildable100 Percent RevalveableDetailsMaterial: Steel, AluminumActive Or Passive Suspension: ActiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 17.42Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ElectronicDamping Type: OilDust Shield Included: NoExtended Length: 22.57Front Spring Rate: 700 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.5 InchMaximum Ride Height Raising Distance: 3.5Minimum Lift: 0.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 611067 - Tacoma/FJ Cruiser 4RNR Lower Co Brg/Spcr Kit, 252001 - 2.5 Fixed Spanner Wrench, 611019 - Coilover Hardware Kit Pair, 252003 - Seal Install Tool 2.5/3.0, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 254100G - 1 Gallon Icon Performance Shock Oil, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild KitShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 5.16Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 53504 - 10-24 4Runner Iic Install Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 57810EP - 10-24 4Runner 1-3 Inch Rear 2.5 VS RR CDEV Pair, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 252012 - -4 To -10 Hose Shield Kit

Features:

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 0-3.5" of lift height over stock
• ICON engineered coil springs with 700 lbs/in spring rate
• External reservoirs to attain cooler operating temperatures during extended off-road use
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• FK rod end bearings for extended longevity and minimal deflection
• Bolt-on kit - no cutting or welding necessary for installation
• 100% Rebuildable
• 100% Revalveable

ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
