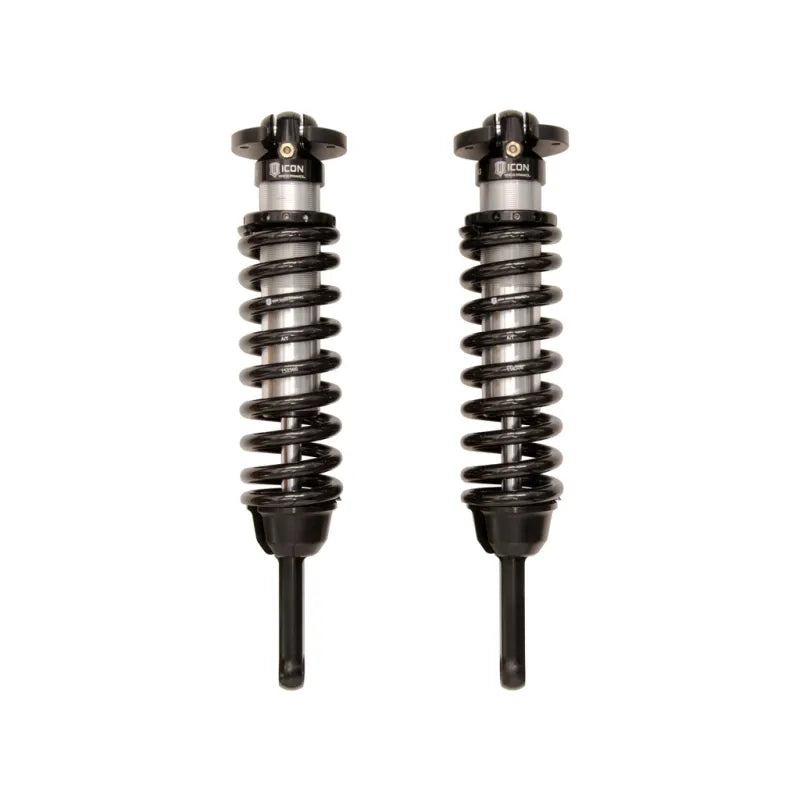

2010-2024 Toyota 4Runner 2010-2014 Toyota FJ Cruiser 2010-2023 Lexus GX V.S. 2.5 Series Extended Travel Coilover Kit Internal Reservoir 700 Lbs Coils Icon Vehicle Dynamics

Part #: 58647-700

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.Their extended travel shock length yields the maximum travel possible with aftermarket front upper control arms and ICON's Vehicle-specific valving along with the larger 2.5 Inch shock body and increased piston area over stock components provide superior ride quality and suspension performance both on- and off-road. Coil springs with increased spring rate are included to help support added weight of accessories such as bumpers, winches, etc., and help ensure proper lift heights for heavier equipped vehicles.When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460.Features and Benefits:Adjustable coilovers yield 0-3.5 Inch of front lift heightCoil springs rated at 700 lb-inIncreased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road useExtended Travel length requires installation of aftermarket front upper control armsSuperior low speed control reduces body roll and increases on-road stabilityHigh quality ICON-engineered coil springs with higher spring rate included to better support added weight to front endCorrosion resistant CAD plated shock body with 7/8 Inch shaftFK Rod End bearings provide extended longevity and minimal deflectionFully serviceable design allows for revalves, rebuilds, and an immeasurable service lifeBolt-in design makes for an easy install into OEM shock locationDetailsMaterial: AluminumActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 17.42Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Type: OilDust Shield Included: NoExtended Length: 22.57Front Spring Rate: 700 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.5 InchMaximum Ride Height Raising Distance: 3.5Minimum Lift: 0.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm OffsetRemote Reservoir: NoReservoir Style: InternalSelf Leveling: NoService Parts: 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 252001 - 2.5 Fixed Spanner Wrench, 252010 - 2.5 Ifp Rebuild Kit, 611067 - Tacoma/FJ Cruiser 4Rnr Lower Co Brg/Spcr Kit, 252003 - Seal Install Tool 2.5/3.0, 252004 - Economy Needle Charging Tool, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 254100G - 1 Gallon Icon Performance Shock Oil, 611019 - Coilover Hardware Kit PairShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearUpper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit

Features:

• Adjustable coilovers yield 0-3.5" of front lift height
• Coil springs rated at 700 lb-in
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Extended Travel length requires installation of aftermarket front upper control arms
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK Rod End bearings provide extended longevity and minimal deflection
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable.
