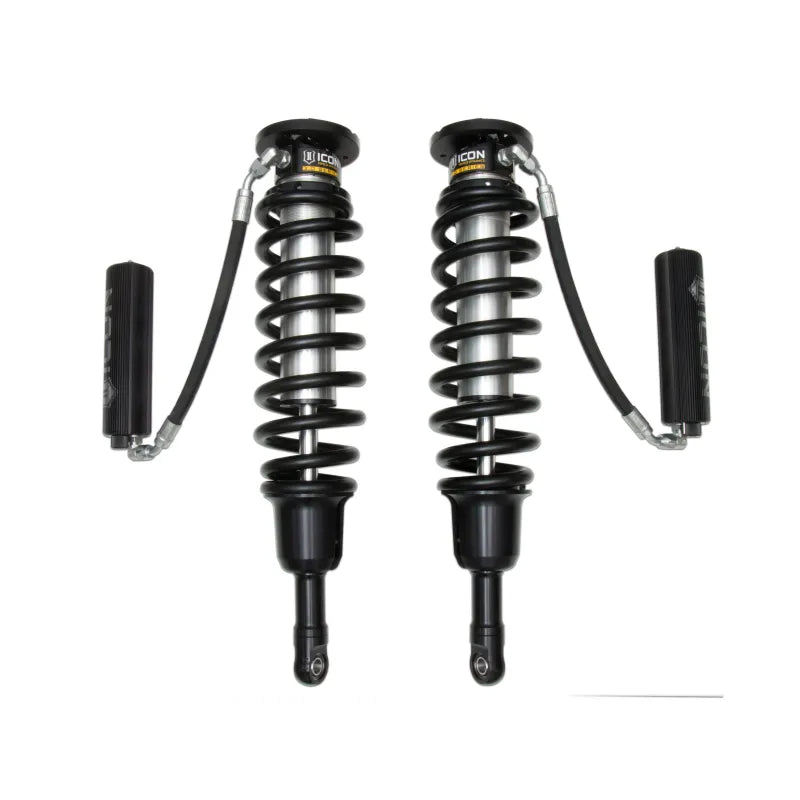

ICON 2017-20 Ford Raptor Front 3.0 VS Remote Reservoir/CDCV Coilover Kit

Part #: 95002

The front end geometry of the Gen 2 Raptor was found to be fairly similar to the previous model truck, however the shock mounting points had been moved higher up on the chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has more shaft travel while utilizing a barreled coil spring for more efficient packaging.The vehicle-specific valving featured in these shocks and the all new ICON-engineered spring work together to provide exceptional on-road ride quality with excellent off-road characteristics. ICON's multi-stage hydraulic InchBump Zone Inch adds to the performance capability by providing an exponential increase in damping ability during the last 40 Percent of compression travel for superior bottom-out resistance.In the ride zone, these 3.0 Series coilovers see a 50 Percent increase in damping ability with the use of a significantly larger piston than what is found in the factory shocks. New 10 Inch finned aluminum reservoirs provide a generous amount of shock oil while also providing an increase in surface area for enhanced cooling and consistent damping.The addition of ICON's CDC Valve technology provides 10 settings of damping adjustment allowing the end-user to adjust the Inchfeel Inch of the shocks for different terrains and vehicle cargo configurations. All of these features work together to deliver the perfect blend of on-road comfort and off-road performance.Features and Benefits:Adjustable coilovers yield 1-3 Inch of front lift heightIncreased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use50 Percent increase in damping ability over OE shocks for excellent performance in extreme off-road conditionsSuperior low speed control reduces body roll and increases on-road stabilityEasy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setupsICON's multi-stage hydraulic InchBump Zone Inch exponentially increases bottom-out resistance in the last 40 Percent of compression travel10 inch finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent dampingBarreled coil spring design maximizes travel and provides more efficient packagingHigh quality ICON-engineered coil springs are guaranteed for life against sagging or breakageHeavy duty CNC machined 1 Inch shock shaftsFK Rod End COM12 spherical bearings ensure maximum strength and durabilityCAD plated shock body with hard anodized piston and top capFully serviceable design allows for revalves, rebuilds, and an immeasurable service lifeBolt-in design makes for an easy install into OEM shock locationInchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durabilityDetailsMaterial: Aluminum, SteelActive Or Passive Suspension: PassiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 3 InchCoil Over Springs Included: YesCompressed Length: 21.12Cylinder Color: GrayCylinder Finish: Ceramic CoatedCylinder Material: SteelDamping Adjustment Type: ManualDamping Type: OilDust Shield Included: NoExtended Length: 29.39Front Spring Rate: 500 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.0 InchMaximum Ride Height Raising Distance: 3.0Minimum Lift: 1.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35 X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 611019 - Coilover Hardware Kit Pair, 252003 - Seal Install Tool 2.5/3.0, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)Shaft Diameter: 1.0Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 8.27Upper Mount Type: Mounting PlateValving Type: Compression: Linear, Rebound: DigressiveAdd On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit, 95199 - 19-20 Raptor Damper Interface Device

Features:

• Adjustable coilovers yield 1-3" of front lift height
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
• Superior low speed control reduces body roll and increases on-road stability
• Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
• ICON's multi-stage hydraulic Bump Zone" exponentially increases bottom-out resistance in the last 40% of compression travel
• 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Barreled coil spring design maximizes travel and provides more efficient packaging
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Heavy duty CNC machined 1" shock shafts
• FK Rod End COM12 spherical bearings ensure maximum strength and durability
• CAD plated shock body with hard anodized piston and top cap
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location
• ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability

2017-2020 FORD RAPTOR FRONT 3.0 VS REMOTE RESERVOIR CDCV COILOVER KIT
