17-20 Ford Raptor Stage 1 3.0 Inch Suspension System Icon Vehicle Dynamics

Part #: K93151

After hundreds of hours of R&D and thousands of miles of real world on and off-road testing, ICON engineers have developed products that provide a true performance upgrade over the factory components found on the 2017-2020 Ford F150 Raptor. The Gen. 2 Raptor is faster, lighter, and smarter than its older brother - suspension mounting locations have changed, a significant amount of weight was trimmed off of the truck, and new technology has been introduced both on the side of safety and performance.In typical ICON fashion, the new Raptor was pushed to its limits in stock trim to build a list of performance Inchneeds and wants Inch. After this process, the ICON engineering team began to go over the truck front to rear to identify any opportunities to overcome the limits of the OE suspension and achieve the gains laid out in the previous phases of R&D.Features and Benefits:The front end geometry of the Gen. 2 Raptor was found to be fairly similar to the previous model truck, however the shock mounting points had been moved higher up on the chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has more shaft travel while utilizing a barreled coil spring for more efficient packaging. The vehicle-specific valving featured in these shocks and the all new ICON-engineered spring work together to provide exceptional on-road ride quality with excellent off-road characteristics. ICON's multi-stage hydraulic InchBump Zone Inch adds to the performance capability by providing an exponential increase in damping ability during the last 40 Percent of compression travel for superior bottom-out resistance. In the ride zone, these 3.0 Series coilovers see a 50 Percent increase in damping ability with the use of a significantly larger piston than what is found in the factory shocks. New 10 Inch finned aluminum reservoirs provide a generous amount of shock oil while also providing an increase in surface area (over 200 Percent) for enhanced cooling and consistent damping. The addition of ICON's CDC Valve technology provides 10 settings of damping adjustment allowing the end-user to adjust the Inchfeel Inch of the shocks for different terrains and vehicle cargo configurations.The rear of the updated Ford Raptor was a highlight for ICON engineers, as new changes proved to be for the better. One significant change was that the shock mounting layout went from a parallel style setup to an offset design. While this is great for controlling axle wrap, it required a thorough reevaluation of the way ICON shocks would need to function to make the most of the refreshed rear end. In the R&D process it was found that Gen. 2 had more available wheel travel than the original Raptor, and by way of an offset upper eyelet ICON engineers laid out a 3.0 Series bypass shock that maximized travel while utilizing the factory shock mounts. To control the rear end in specific ranges of travel, these shocks feature 3 unique bypass zones Inch 2 on the compression stroke and one rebound. Unlike other shocks that have a loud bypass Inchclick Inch when functioning, ICON bypass valves feature damped valve stops for quiet and precise operation. Easy-to-adjust knobs allow for quick changes to shock tuning without the need for tools, enabling the user to dial in their ride with minimal down time. When in use on and off-road, ICON's patented Anti-Wobble Link stabilizes the shocks to prevent rotation and possible collision. Additionally, urethane shin guards protect the shock shafts and rod ends under grueling off-road conditions.Holistic Engineering - the ICON Difference: When developing suspension components for a new vehicle, ICON takes a different approach than many others. Rather than focusing in on one particular part, ICON engineers look at the vehicle as a whole, identify inherent strengths and weaknesses, and set a target for performance. With a focus on maximizing wheel travel and improving ride quality, ICON will develop components that address (and often times replace) OE limiting factors. This holistic engineering philosophy often results in the development of several parts designed to work together as a system to provide a balanced on and off-road performance upgrade. Because ICON is designing and manufacturing all of the components necessary to improve the performance of a vehicle from front to back, end-users can rest easy knowing they are dealing with ONE manufacturer, ONE standard of quality, and ONE awesome warranty to back it all up.ICON Vehicle Dynamics products are proudly designed, manufactured, and assembled in Riverside, California by a team of passionate off-road enthusiasts. With a reputation for quality, performance, and service it's clear that ICON Vehicle Dynamics is the top choice for performance suspension systems and shock absorbers for the 2017-2020 Ford F150 Raptor.3.0 SERIES COILOVER SHOCK KITAdjustable coilovers yield 1-3 Inch of front lift heightIncreased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use50 Percent increase in damping ability over OE shocks for excellent performance in extreme off-road conditionsSuperior low speed control reduces body roll and increases on-road stabilityEasy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setupsICON's multi-stage hydraulic InchBump Zone Inch exponentially increases bottom-out resistance in the last 40 Percent of compression travel10 inch finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent dampingBarreled coil spring design maximizes travel and provides more efficient packagingHigh quality ICON-engineered coil springs are guaranteed for life against sagging or breakageHeavy duty CNC machined 1 Inch shock shaftsCAD plated shock body with hard anodized piston and top cap3.0 SERIES 3-TUBE BYPASS SHOCK KIT3-tube bypass design and Bump Zone technology provides multiple unique zones of damping and rebound control12 inch finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent dampingOffset upper eyelet with patented ICON Anti-Wobble link for optimized shock mounting and packagingEasy-to-adjust detented knobs offer quick adjustability without the use of toolsSpecially engineered damped valve stops for quiet and precise operation without the loud Inchclicking Inch noise common with other brandsFK Rod End COM12 spherical bearings ensure maximum strength and durabilityUrethane shin guards help to protect the shock shaft & rod end from premature wearCAD plated shock body with hard anodized piston and top capFully serviceable design allows for revalves, rebuilds, and an immeasurable service lifeBolt-in design makes for an easy install into OEM shock locationDetailsBushings Included: NoCoils Quantity Front: 2.0Grade Type: PerformanceMaximum Lift: 3.0 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 95199 - 19-20 Raptor Damper Interface Device, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit

Features:

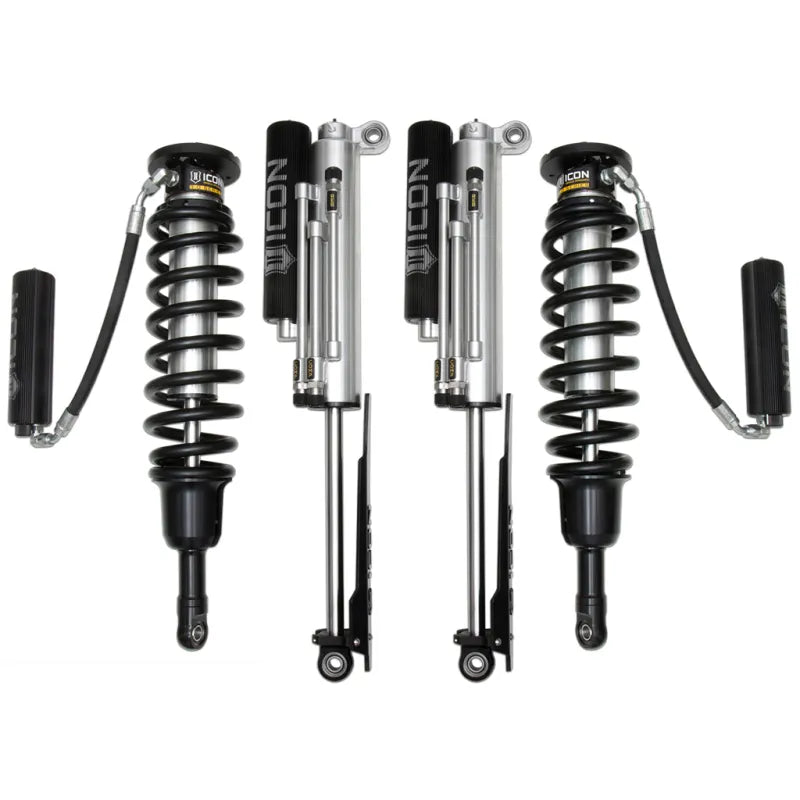

• 3.0 SERIES COILOVER SHOCK KIT
• Adjustable coilovers yield 1-3" of front lift height
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
• Superior low speed control reduces body roll and increases on-road stability
• Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
• ICON's multi-stage hydraulic Bump Zone" exponentially increases bottom-out resistance in the last 40% of compression travel
• 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Barreled coil spring design maximizes travel and provides more efficient packaging
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Heavy duty CNC machined 1" shock shafts
• CAD plated shock body with hard anodized piston and top cap
• 3.0 SERIES 3-TUBE BYPASS SHOCK KIT
• 3-tube bypass design and "Bump Zone" technology provides multiple unique zones of damping and rebound control
• 12" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Offset upper eyelet with patented ICON Anti-Wobble link for optimized shock mounting and packaging
• Easy-to-adjust detented knobs offer quick adjustability without the use of tools
• Specially engineered damped valve stops for quiet and precise operation without the loud clicking" noise common with other brands
• FK Rod End COM12 spherical bearings ensure maximum strength and durability
• Urethane shin guards help to protect the shock shaft & rod end from premature wearCAD plated shock body with hard anodized piston and top cap
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location
