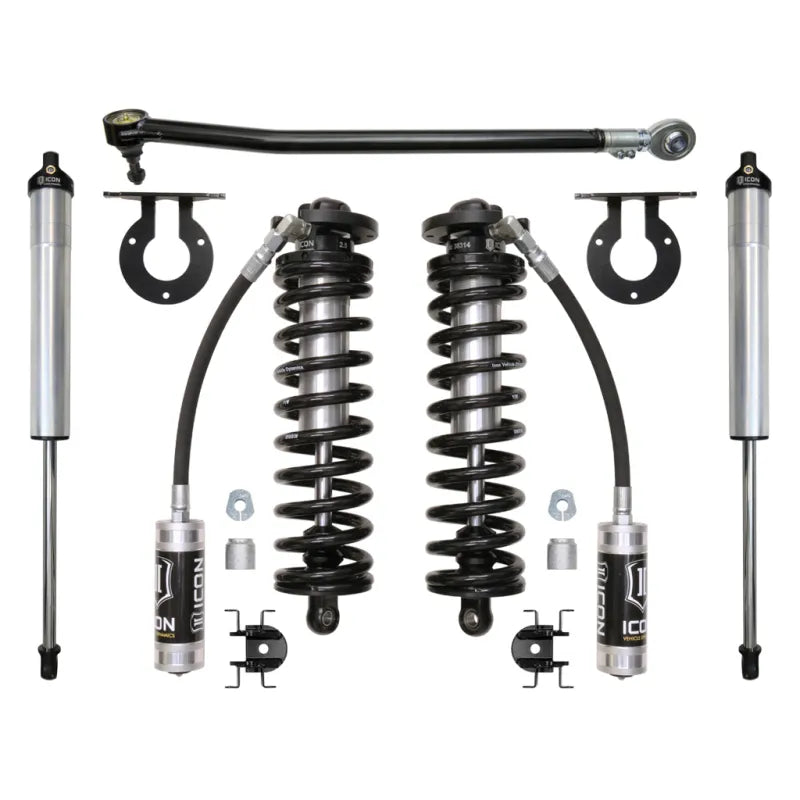

2017-2023 Ford F-250/F-350 Super Duty 4WD 2.5-3 Inch Lift Stage 2 Coilover Conversion System Icon Vehicle Dynamics

Part #: K63142

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2023 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment.The 2.5 Inch Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.Features and Benefits:Bolt-in system fits in OE coil bucket locationRide height adjustable coilovers provide 2.5-3 Inch or 3.25-3.75 Inch of lift, depending on year model of truckDecreased body roll and improved on and off-road ride dynamicsVehicle-specific shock valving provides unparalleled ride quality and controlShocks are fully rebuildable and revalveableCoilover conversion allows for addition of secondary shockCorrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finishEibach coil springs guaranteed for life against sagging or breakageFK Rod End bearings for extended longevity and minimal deflectionDetailsActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2.0Coil Spring Color: BlackCoil Spring Material: SteelCoils Quantity Front: 2.0Front Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3.0 InchMaximum Lift Front: 3.0 InchMaximum Lift Height Front: 3.75 InchMinimum Lift Front: 2.5 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRear Reservoir Style: InternalRear Shock Body Diameter: 2.5Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 65000 - 05-22 FSD Dual Stabilizer Kit, 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 191014 - .25 Inch Collar Spanner Pin Wrench, 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit

Features:

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection

2017-2023 FORD F-250/F-350 2.5-3" LIFT STAGE 2 COILOVER CONVERSION SYSTEM
