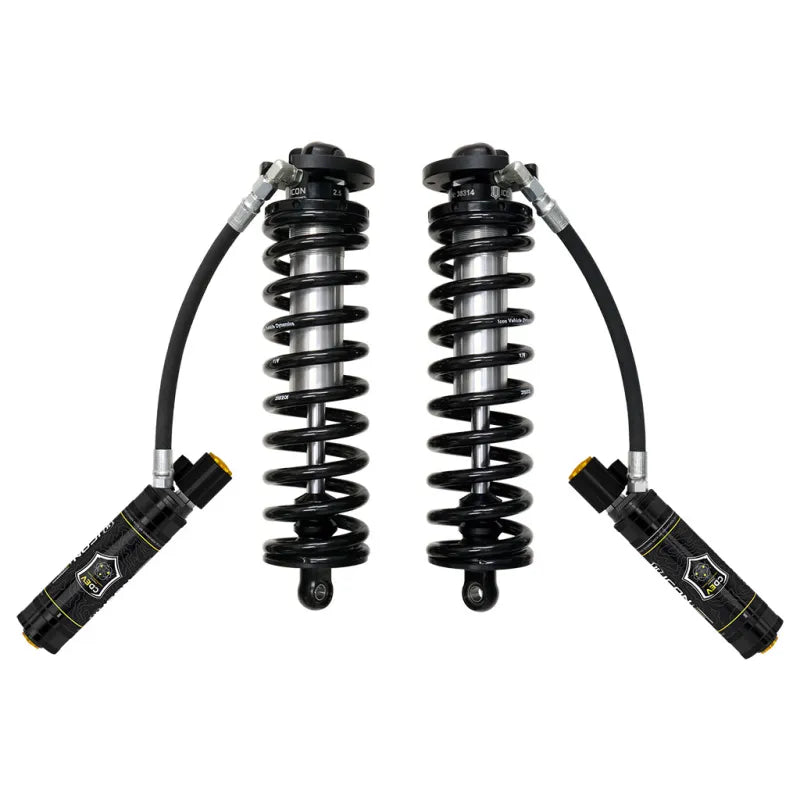

2005-2023 Ford F-250/F-350 Super Duty 4WD 2.5-3 Inch Lift V.S. 2.5 Series Coilover Conversion Kit Remote Reservoir W/ CDEV W/ Caster Cams Icon Vehicle Dynamics

Part #: 61720E

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2023 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment.The 2.5 Inch Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-tuned as necessary.The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.Features and Benefits:Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.Bolt-in system fits in OE coil bucket locationRide height adjustable coilovers (2.5-3 Inch or 3.25-3.75 Inch depending on year of vehicle)ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)Decreased body roll and improved on and off-road ride dynamicsVehicle-specific shock valving provides unparalleled ride quality and controlCoilover conversion allows for addition of optional secondary shocksCorrosion resistant CAD plated coilover shock body with 7/8 Inch shaftICON engineered coil springs guaranteed for life against sagging or breakageFK Rod End bearings for extended longevity and minimal deflectionFully rebuildable and re-tunableDetailsMaterial: Aluminum, SteelActive Or Passive Suspension: ActiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAlignment Cams Included: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 12.75Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ElectronicDamping Type: OilDust Shield Included: NoExtended Length: 19.71Front Spring Rate: 400 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.75 InchMaximum Ride Height Raising Distance: 3.75Minimum Lift: 0.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 257337 - 7/8 Shaft 11.25 Oal, 7.00 TravelShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 6.96Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 93500 - 15-23 F150 & 17-22 FSD Iic Install Kit, 66512 - 05-25 FSD 4WD 2.5 Inch Front 2.0 Vs Ir, 611003 - 2.5 Resi Doubler Mount 7.5 Inch Kit, 67800CP - 05-25 FSD 4WD 0-2.5 Inch Front 2.5 VS RR Cdcv Pair, 66512R - 05-25 FSD 4WD 2.5 Inch Front 2.0 Vs Rr, 67800EP - 17-25 FSD 4WD 0-2.5 Inch Front 2.5 VS RR CDEV Pair, 191207 - Iic Controler Alt Function Plug Kit, 198001 - Billet Spanner Wrench Kit, 67800P - 05-25 FSD 4WD 0-2.5 Inch Front 2.5 VS RR Pair, 93502 - 23-25 FSD Iic Install Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit

Features:

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers (2.5-3" or 3.25-3.75" depending on year of vehicle)
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Coilover conversion allows for addition of optional secondary shocks
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• ICON engineered coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

ICON's 2.5 Series Remote Reservoir CDEV Bolt-In Coilover Kit will add a new level of performance and adjustability to the 05-23 Ford Super Duty. Increasing the overall damping ability while allowing for user-defined ride height adjustment.
