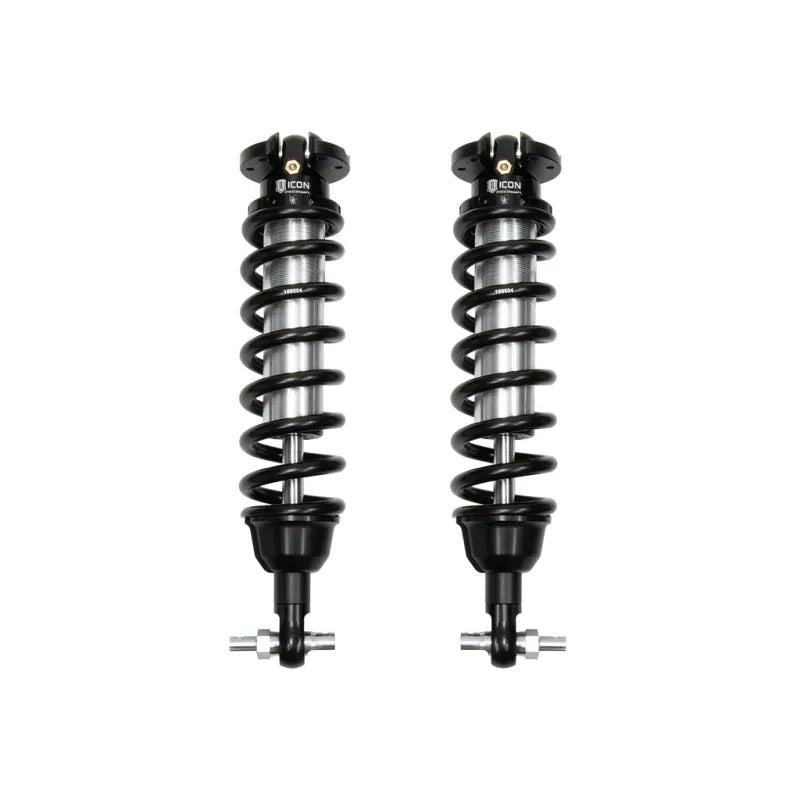

2019-2023 Ford Ranger 0-3.5 Inch Lift Extended Travel 2.5 Vs Coilover Kit Icon Vehicle Dynamics

Part #: 91255

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. These adjustable coilovers allow up to 0-3.5 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.ICON's Vehicle-specific valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield superior ride quality and suspension performance both on- and off-road. Their extended travel length requires ICON front upper control arms and yields increased front wheel travel compared to ICON standard travel coilovers for maximum suspension performance.When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger.Features and Benefits:Adjustable coilovers yield 0-3.5 Inch of front lift heightVehicle specific valving provides unrivaled ride quality across a wide range of on and off-road useExtended travel length requires ICON upper control arms but offers more wheel travel and improved performanceSuperior low speed control reduces body roll and increases on-road stabilityHigh quality ICON-engineered coil springs are guaranteed for life against sagging or breakageCorrosion resistant CAD plated shock body with 7/8 Inch diameter shaftFully serviceable design allows for revalves, rebuilds, and an immeasurable service lifeBolt-in design makes for an easy install into OEM shock locationDetailsMaterial: Aluminum, SteelActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 15.82Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Type: OilDust Shield Included: NoExtended Length: 21.38Front Spring Rate: 650 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: Bar PinMaximum Lift: 3.5 InchMaximum Ride Height Raising Distance: 3.5Minimum Lift: 0.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inchx11.25 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 6.00 Inch Backspace / 25mm Offset, Icon Alloys - 17x8.5 W/ 5.75 Inch Backspace / 25mm OffsetRemote Reservoir: NoReservoir Style: InternalSelf Leveling: NoService Parts: 252010 - 2.5 Ifp Rebuild Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 611019 - Coilover Hardware Kit Pair, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0, 252004 - Economy Needle Charging Tool, 257338 - 7/8 Shaft 12.25 Oal, 8.00 TravelShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Flat On Bar PinSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 5.57Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit

Features:

• Adjustable coilovers yield 0-3.5" of front lift height
• Vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Extended travel length requires ICON upper control arms but offers more wheel travel and improved performance
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated shock body with 7/8" diameter shaft
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
