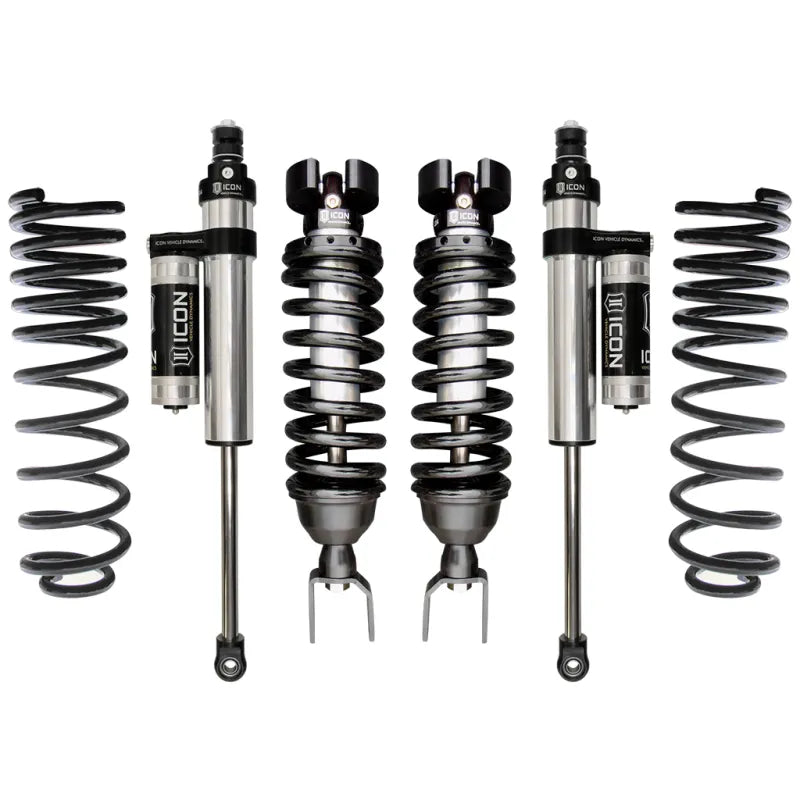

19-Up RAM 1500 2/4WD 0-1.5 Inch Stage 3 Suspension System Icon Vehicle Dynamics

Part #: K213103

With several changes being made to the 2019 RAM 1500 platform including an all-new frame, increased chassis rigidity, and a lighter overall weight, ICON's R&D department went above and beyond to make sure the new RAM truck was properly analyzed. With these changes made by the factory, the development of new ICON rear shocks (and revised front coilover tuning) was necessary to optimize fitment and performance on this new platform.Features and Benefits:ICON Vehicle Dynamics Dodge Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from 0-1.5 Inch of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks paired with 1.5 Inch lift, dual rate rear coil springs balance the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-UP Ram 1500 Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.Adjustable coilovers from 0-1.5 Inch of lift height allow for fitment of larger and more aggressive tiresICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality1.5 Inch lift, dual rate rear coil springs offer incredible ride quality and increased suspension performanceCorrosion resistant CAD plated coilover shock bodies with 7/8 shaftsRear 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finishFK rod end bearings for extended longevity and minimal deflectionFits 2WD & 4WD applications6061 Aircraft grade aluminum CNC machined componentsShocks are fully rebuildable and revalvable100 Percent Bolt-on system - no drilling, cutting, or welding necessary for installDetailsBushings Included: YesCoils Quantity Front: 2.0Coils Quantity Rear: 2.0Grade Type: PerformanceMaximum Lift: 1.5 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit

Features:

• Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
• ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
• 1.5" lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
• Corrosion resistant CAD plated coilover shock bodies with 7/8? shafts
• Rear 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK rod end bearings for extended longevity and minimal deflection
• Fits 2WD & 4WD applications
• 6061 Aircraft grade aluminum CNC machined components
• Shocks are fully rebuildable and revalvable
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

2019-UP RAM 1500 4WD 0-1.5" LIFT STAGE 3 SUSPENSION SYSTEM
