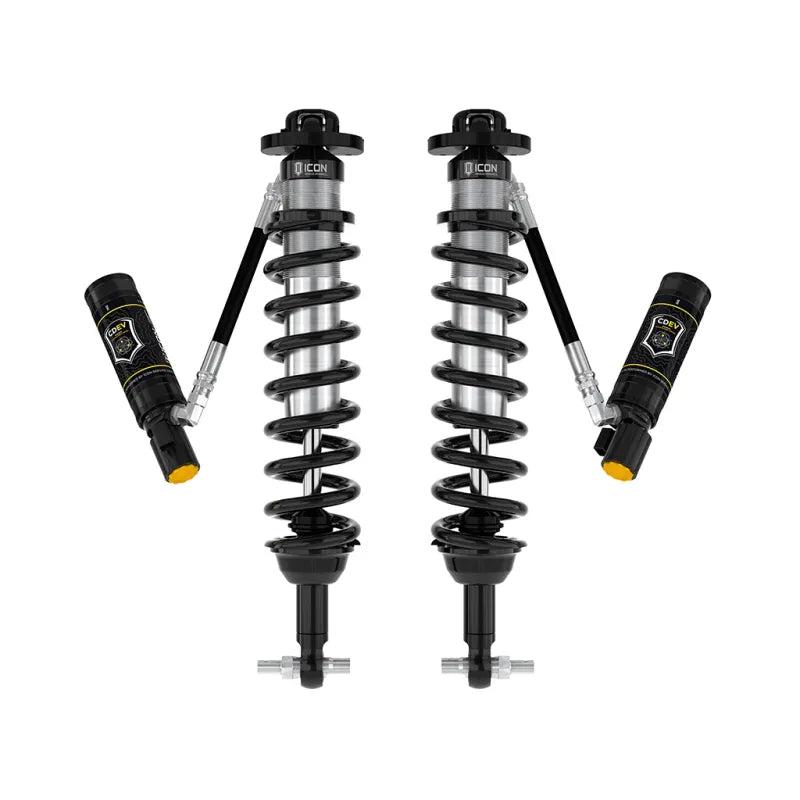

2021-2023 Ford Bronco Front 1.5-4 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV Icon Vehicle Dynamics

Part #: 48700E

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are the ideal upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4 Inch of lift height adjustability on Broncos without the Sasquatch package or 2-3 Inch of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations.ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock.Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series rear coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.Features and Benefits:Increased wheel travel (up to 11.5 Inch) and ride quality over stockVehicle specific tuned for superior shock damping and controlRemote reservoirs maintain cooler operating temperatures during extended off-road useICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changesAdjustable up to 3-4 Inch of front lift height on non-Sasquatch or 2-3 Inch of front lift on Sasquatch BroncosICON engineered coil springs6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated shock bodies with 7/8 Inch diameter shaftsFK rod end bearings for extended longevity and minimal deflectionHigh strength alloy CNC machined lower bar pinFully rebuildable and re-tunable100 Percent Bolt-on - no drilling, cutting or welding necessary for installationDetailsMaterial: Aluminum, SteelActive Or Passive Suspension: ActiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 18.14Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ElectronicDamping Type: OilDust Shield Included: NoExtended Length: 24.53Front Spring Rate: 500 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: Bar PinMaximum Lift: 4.0 InchMaximum Ride Height Raising Distance: 4.0Minimum Lift: 2.0 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: (With Sasquatch Package): 35 Inch X 12.50 Inch (37 Inch Tires Require Coilover Bump Stop Spacers Along With Minor Trimming), (Without Sasquatch Package): 35 Inch X 12.50 Inch (Recommend High Clearance Crash Bars Part Number 42000, 37 Inch Tires Require Coilover Bump Stop Spacers Along With Trimming And Modifications)Recommended Aftermarket Wheels: (With Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, (Without Sasquatch Package): Icon Alloys - 18x9 Inch W/ 6.00 Inch Backspace / 25mm Offset, (Without Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, (With Sasquatch Package): Icon Alloys - 20x9 Inch W/ 5.00 Inch Backspace / 0mm Offset, (With Sasquatch Package): Icon Alloys - 18x9 Inch W/ 5.00 Inch Backspace / 0mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild KitShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Flat On Bar PinSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 6.39Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 48400DJ - 21-23 Bronco Tubular UCA Dj Pro Kit, 611075 - C/O Bump Stop Spacer Kit 7/8 Inch Shaft 1/2 Inch Tall, 198001 - Billet Spanner Wrench Kit, 48710E - 21-23 Bronco Rear 2.5 VS RR CDEV Coilover Kit, 43501 - 21-23 Bronco Iic Install Kit, 42000 - 21-23 Bronco High Clearance Crash Bar Kit, 48500DJ - 21-23 Bronco Billet UCA Dj Pro Kit, 252012 - -4 To -10 Hose Shield Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 45212 - 21-23 Bronco XD Tie Rod Kit

Features:

• Increased wheel travel (up to 11.5") and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3" of front lift on Sasquatch Broncos
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting or welding necessary for installation

These ICON coilovers feature 2.5 Series shocks and coil springs optimized per application. These hardcore units are outfitted with remote reservoirs to stay cooler during intense wheeling and ICON's CDEV for active compression adjustment
