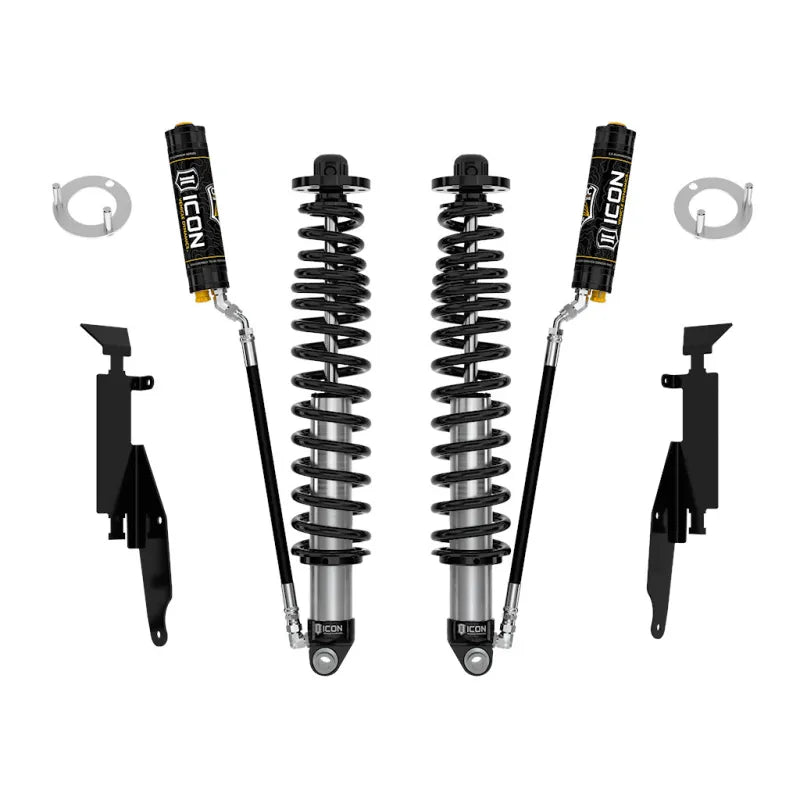

2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDCV Icon Vehicle Dynamics

Part #: 48710C

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDCV are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3 Inch of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25 Inch of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations.ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. This shaft up orientation also requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design.When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.Features and Benefits:Increased wheel travel (up to 14 Inch) and ride quality over stockVehicle specific tuned for superior shock damping and controlRemote reservoirs maintain cooler operating temperatures during extended off-road useICON CDCV equipped for 10 settings of external compression damping adjustmentAdjustable up to 2-3 Inch of rear lift height on non-Sasquatch or 1.25-2.25 Inch of rear lift on Sasquatch BroncosUnique ICON engineered triple rate coil springs6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated shock bodies with 7/8 Inch diameter shaftFK rod end bearings for extended longevity and minimal deflectionFully rebuildable and re-tunable100 Percent Bolt-on - no drilling, cutting or welding necessary for installationDetailsMaterial: Aluminum, SteelActive Or Passive Suspension: PassiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 18.54Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ManualDamping Type: OilDust Shield Included: NoExtended Length: 29.21Gas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.0 InchMaximum Ride Height Raising Distance: 3.0Minimum Lift: 1.25 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: (With Sasquatch Package): 35 Inch X 12.50 Inch (37 Inch Tires Require Coilover Bump Stop Spacers), (Without Sasquatch Package): 35 Inch X 12.50 Inch (37 Inch Tires Require Coilover Bump Stop Spacers)Recommended Aftermarket Wheels: (With Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, (Without Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, (With Sasquatch Package): Icon Alloys - 20x9 Inch W/ 5.00 Inch Backspace / 0mm Offset, (With Sasquatch Package): Icon Alloys - 18x9 Inch W/ 5.00 Inch Backspace / 0mm Offset, (Without Sasquatch Package): Icon Alloys - 18x9 Inch W/ 6.00 Inch Backspace / 25mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild KitShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Center Of EyletShock Absorber Rod End Measuring Point: Top Of Mounting PlateSpring Color: BlackSpring Material: SteelSpring Rate Type: Progressive Triple RateTravel Length: 10.67Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 611073 - 21-23 Bronco Hose Route Kit Rear Link 1.75 Inch, 44200T - 21-23 Bronco Rear Adj Track Bar Kit, 611074 - C/O Bump Stop Spacer Kit 7/8 Inch Shaft 3/8 Inch Tall, 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 611072 - 21-23 Bronco Hose Route Kit OEM Rear Link 1.9 Inch

Features:

• Increased wheel travel (up to 14") and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25" of rear lift on Sasquatch Broncos
• Unique ICON engineered triple rate coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting or welding necessary for installation

These ICON coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. The shock's bigger 2.5" body and larger piston area improves damping ability and ride quality across varying types of terrain.
