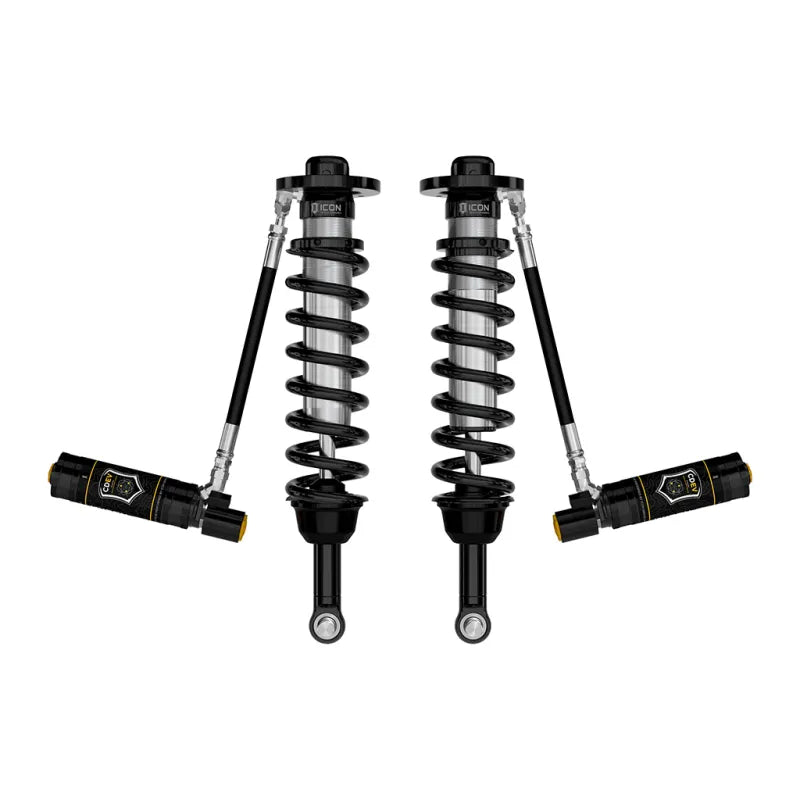

2021-2024 Ford F-150 4WD-Tremor 3.5-4.5 Inch-2.5-3 Inch Lift Front V.S. 2.5 Series Coilovers Remote Reservoir W- CDEV Pair Icon Vehicle Dynamics

Part #: 91824E

ICON Vehicle Dynamics V.S. Series 2.5 Inch coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON's Front Knuckle Kit.These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON's Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3 Inch of lift height adjustability on F-150 Tremor or 3.5-4.5 Inch of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations.The larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed.This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle.Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.Features and Benefits:Application specific length for F-150 Tremor or other F-150 sub-models with ICON Front Knuckle KitIncreased wheel travel and ride quality over stockVehicle specific tuned for superior shock damping and controlICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)Adjustable for 2.5-3 Inch of lift height over stock on F-150 Tremor or 3.5-4.5 Inch over stock on other F-150 sub-models with ICON Front Knuckle KitRemote reservoirs maintain cooler operating temperatures during extended off-road useICON engineered coil Springs6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated shock body with 7/8 Inch shaftFK rod end bearings for extended longevity and minimal deflectionHigh strength alloy CNC machined lower bar pin100 Percent Bolt-on - no drilling, cutting, or welding necessary for installationDetailsMaterial: Steel, AluminumActive Or Passive Suspension: ActiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 18.67Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ElectronicDamping Type: OilDust Shield Included: NoExtended Length: 24.03Front Spring Rate: 550 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: Bar PinMaximum Lift: 4.5 InchMaximum Ride Height Raising Distance: 4.5Minimum Lift: 3.5 InchOem Wheels & Tires Fitment: Not Compatible With All Available OE Wheel/Tire Combinations. Aftermarket Wheels With Lower Offset/Less Backspace Recommended.Recommended Aftermarket Tires: 34 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 252003 - Seal Install Tool 2.5/3.0, 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252010 - 2.5 Ifp Rebuild Kit, 252004 - Economy Needle Charging Tool, 611019 - Coilover Hardware Kit PairShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Flat On Bar PinSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 5.37Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 198001 - Billet Spanner Wrench Kit, 98522Dj - 21-24 F150 Tubular UCA Dj Pro Kit, 252012 - -4 To -10 Hose Shield Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 98523Dj - 21-24 F150 Billet UCA Dj Pro Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 94000 - 21-24 F150 4Wd Front Knuckle Kit, 97721Ep - 21-24 F150 4Wd Tremor Rear 2.5 Vs Pb CDEV Pair, 93500 - 15-23 F150 & 17-22 FSD Iic Install Kit

Features:

• Application specific length for F-150 Tremor or other F-150 sub-models with ICON Front Knuckle Kit
• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Adjustable for 2.5-3" of lift height over stock on F-150 Tremor or 3.5-4.5" over stock on other F-150 sub-models with ICON Front Knuckle Kit
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON engineered coil Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 100% Bolt-on - no drilling, cutting, or welding necessary for installation

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
