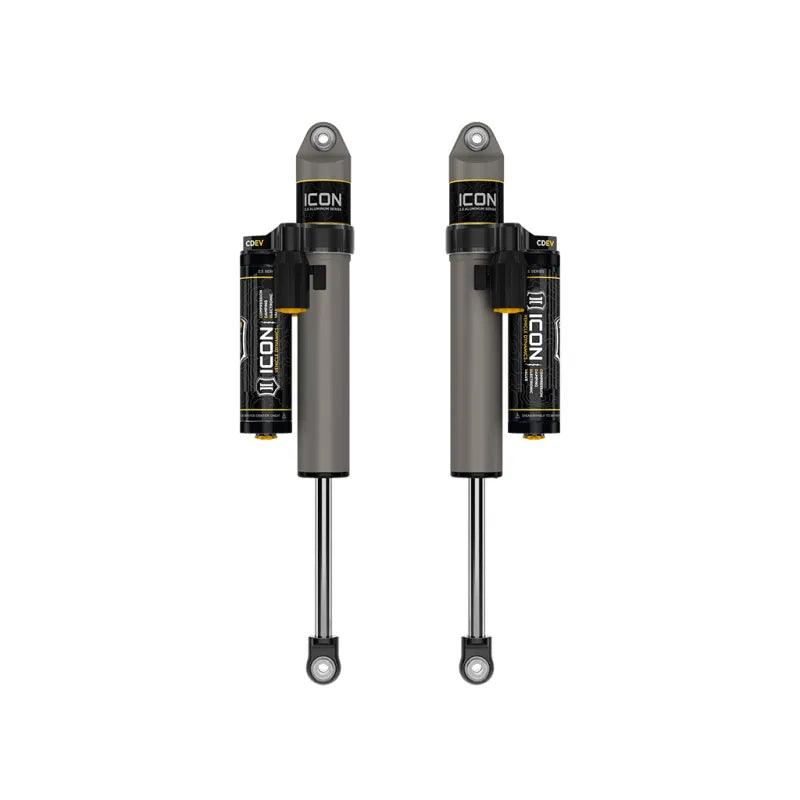

2021-2024 Ford F-150 0-1 Inch Lift Rear V.S. 2.5 Aluminum Series Shock Absorbers Piggyback Reservoir W/ CDEV Pair Icon Vehicle Dynamics

Part #: 97720EP

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain.CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.Features and Benefits:ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finishICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compressionPiggyback reservoir design improves heat dissipation to reduce shock fade during prolonged usePremium grade 5WT shock oil for consistent suspension damping along a wide temperature rangeNitrogen charged monotube design with piggyback reservoirOne piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road7/8 Inch diameter induction hardened, chrome plated shock shaftPTFE lined spherical bearings and application specific mounting hardware6061 aircraft grade aluminum CNC machined componentsFully rebuildable and re-tunableDetailsActive Or Passive Suspension: ActiveAdjustable: YesAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NoBore Diameter: 2.25Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: ElectronicDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EyeletMounting Hardware Included: YesReservoir Type: PiggybackService Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 252001 - 2.5 Fixed Spanner Wrench, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252003 - Seal Install Tool 2.5/3.0, 257341S - 7/8 Shaft 15.25 Oal, 11.00 Travel ShortShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center Of EyletShock Absorber Rod End Measuring Point: Center Of EyletTube Outside Diameter: 2.5Upper Mount Type: EyeletValving Type: DigressiveAdd On Part: 91825E - 21-24 F150 4WD 3 Inch Lift 2.5 VS RR CDEV Coilover Kit, 93500 - 15-23 F150 & 17-22 FSD Iic Install Kit, 91823E - 21-23 F150 4WD 0-2.75 Inch 2.5 VS RR CDEV Coilover Kit

Features:

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON's internal Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature piggyback reservoirs with CDEV and are 100% rebuildable/revalveable.
