2022-2023 Ford F-150 Lightning Lowered 0-4 Inch 2.5 Vs Remote Reservoir CDEV Coilover Kit Rear Icon Vehicle Dynamics

Part #: 91836E

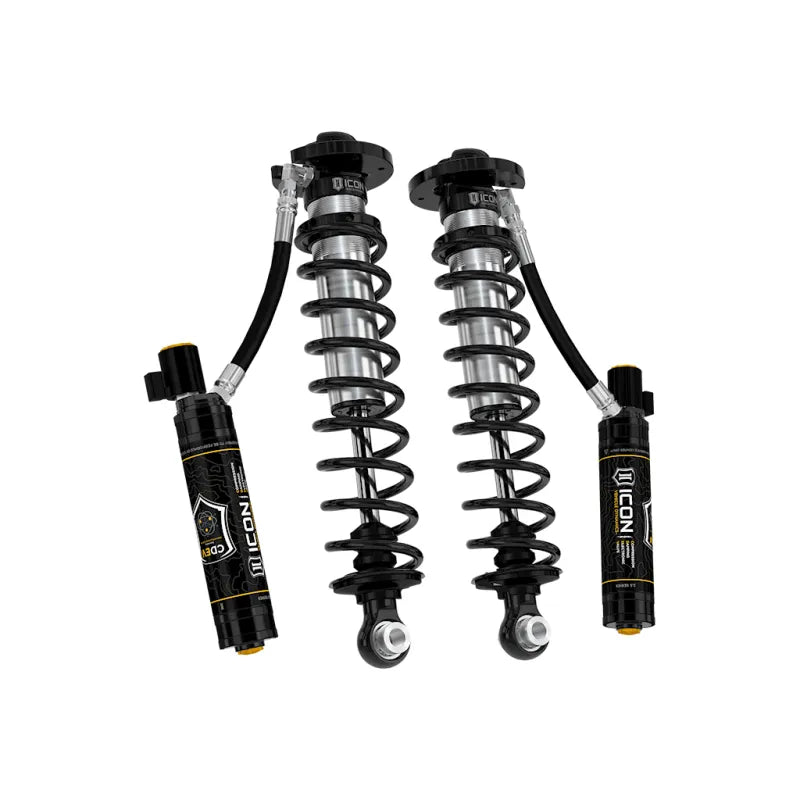

Experience unmatched performance with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV, the ultimate upgrade for your 2022-2023 Ford F-150 Lightning. These coilovers deliver an aggressive stance, lower center of gravity, and unparalleled handling characteristics, thanks to their adjustable rear lowered height range of 0-4 Inch under stock.With ICON's vehicle specific shock length, valving, and the larger 2.5 Inch shock body with increased piston area, you will enjoy maximum wheel travel, exceptional ride quality, and superior suspension performance that surpasses stock components.Features and Benefits:Prepare for intense driving conditions with confidence, as the remote reservoirs significantly increase shock oil volume and heat dissipation surface area, resisting overheating and cavitation under aggressive use, preventing damper fade. Additionally, the ICON CDE Valve upgrade is included, providing easy ride tuning capabilities from inside your vehicle. The Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that regulates oil flow into the reservoir, reacting in less than 40ms to make accurate adjustments for varying terrain. The hydraulic circuits of CDEV are meticulously tailored per application, offering the highest resolution and dynamic range specific to your F-150 Lightning.Take control of your suspension like never before with the power of ICON Intelligent Control and the proprietary ICON mobile app. This innovative system leverages information from the onboard G-force sensor and gyroscope, utilizing cutting-edge algorithms and user-defined settings to predict terrain and actively adjust shock damping settings via CDEV accordingly. When combined with ICON 2.5 Series CDEV front coilovers, your vehicle's control will be balanced front to rear, providing you with the ultimate driving experience for your F-150 Lightning.Height-adjustable coilovers offer 0-4 Inch of lowered height adjustmentVehicle specific tuned front shocks for superior shock damping and vehicle controlICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)Remote reservoir to maintain cooler operating temperatures and house CDE ValvesIncreased compression travel compared to stockICON engineered coil springs with optimized spring rates for improved ride quality6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated shock bodies with 7/8 Inch induction hardened, chrome plated shaftsFK Rod End bearings for extended longevity and minimal deflectionFully rebuildable and re-tunable100 Percent Bolt-on - no cutting or welding necessary for installationDetailsMaterial: Aluminum, SteelActive Or Passive Suspension: ActiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 14.39Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ElectronicDamping Type: OilDust Shield Included: NoExtended Length: 22.26Gas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Drop: 2.0Maximum Ride Height Lowering Distance: 4.0Minimum Drop: 0.0Oem Wheels & Tires Fitment: YesRear Spring Rate: 225 InchRecommended Aftermarket Tires: 33 Inch X 12.00 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: 20x9 Inch With 6 Inch Backspace / 25mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyeletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearUpper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 198000 - 2 Pin Coilover Spanner Wrench Kit

Features:

• Height-adjustable coilovers offer 0-4" of lowered height adjustment
• Vehicle specific tuned front shocks for superior shock damping and vehicle control
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Remote reservoir to maintain cooler operating temperatures and house CDE Valves
• Increased compression travel compared to stock
• ICON engineered coil springs with optimized spring rates for improved ride quality
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• 100% Bolt-on - no cutting or welding necessary for installation

ICON's vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance with a lowered stance.
