2022-2023 Toyota Land Cruiser 300 Series 1-3 Inch Lift Stage 3 Suspension System Billet Icon Vehicle Dynamics

Part #: K53263

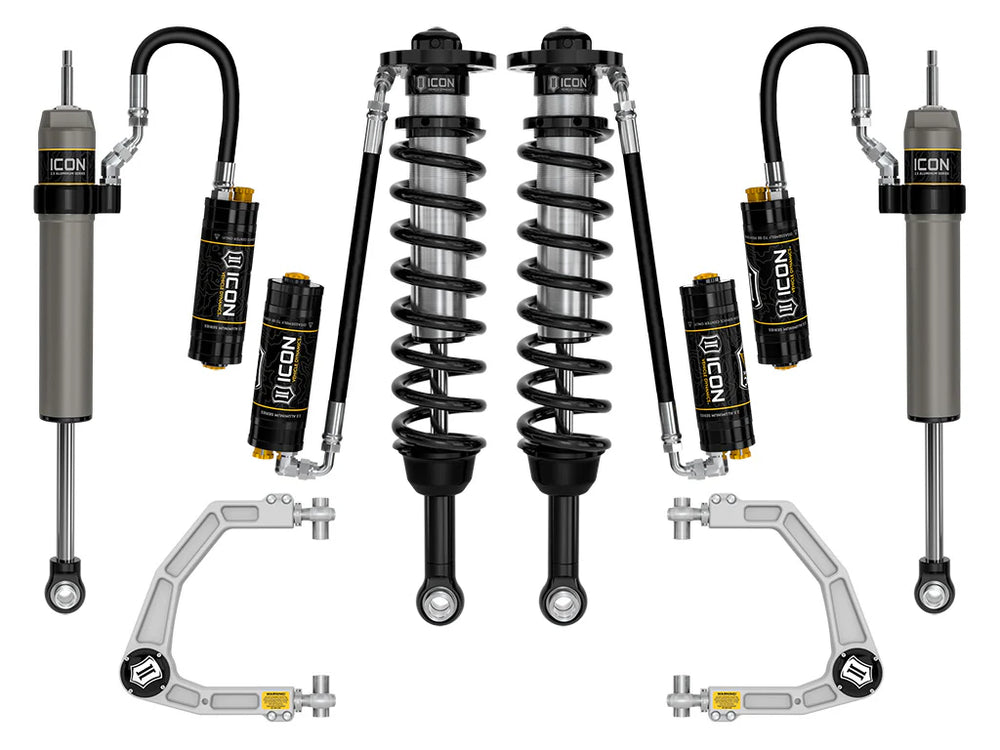

The 300 Series Toyota Land Cruiser is a luxurious vehicle packed with Inchall the bells and whistles Inch, but underneath all the sophistication it is still a very capable vehicle that sees use both on and off-road worldwide. While the 300 Series has exceptional ride characteristics in stock form, the suspension needs a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt.ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and developed several suspension systems that drastically increase the overall ability of the 2022-2023 Toyota Land Cruiser 300 Series.Features and Benefits:This Stage 3 system features the 2022-2023 Toyota Land Cruiser 300 Series VS 2.5 Series remote reservoir front coilovers. These adjustable coilovers allow up to 1-3 Inch of lift height adjustability over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2022-2023 Toyota Land Cruiser 300 Series with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.Rounding out the Stage 3 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2023 Land Cruiser 300 Series. The 2.5 Aluminum Series shocks' larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20 Percent of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Land Cruiser.Bolt-on design means no cutting or welding necessary for installIncreased wheel travel and ride quality over stockImproved vehicle dynamics and decreased body rollBillet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivabilityUCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulationHeight adjustable coilovers provide 1-3 Inch of front lift heightICON engineered front coilover springsVehicle-specific tuned front and rear shocks provide superior damping and controlCorrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finishRemote reservoirs improve heat dissipation to reduce shock fade during prolonged useAll shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hardShocks are fully rebuildable and revalveableDetailsBushings Included: YesCoils Quantity Front: 2.0Dual Rate Coil Springs: YesFront Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift Front: 3.0 InchMinimum Lift Front: 1.0 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 6.00 Inch Backspace / 25mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 191014 - .25 Inch Collar Spanner Pin Wrench, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 252008 - 2.5 X 13 Shock Boot Black (Pair), 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit

Features:

• Bolt-on design means no cutting or welding necessary for install
• Increased wheel travel and ride quality over stock
• Improved vehicle dynamics and decreased body roll
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Height adjustable coilovers provide 1-3" of front lift height
• ICON engineered front coilover springs
• Vehicle-specific tuned front and rear shocks provide superior damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Remote reservoirs improve heat dissipation to reduce shock fade during prolonged use
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Shocks are fully rebuildable and revalveable

ICON suspension systems lift your Land Cruiser 300 while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, youa (TM)ll have the best suspension solution on the market.
