2022-2024 Toyota Tundra 5-6 Inch Lift Front V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDEV Pair Icon Vehicle Dynamics

Part #: 58771E

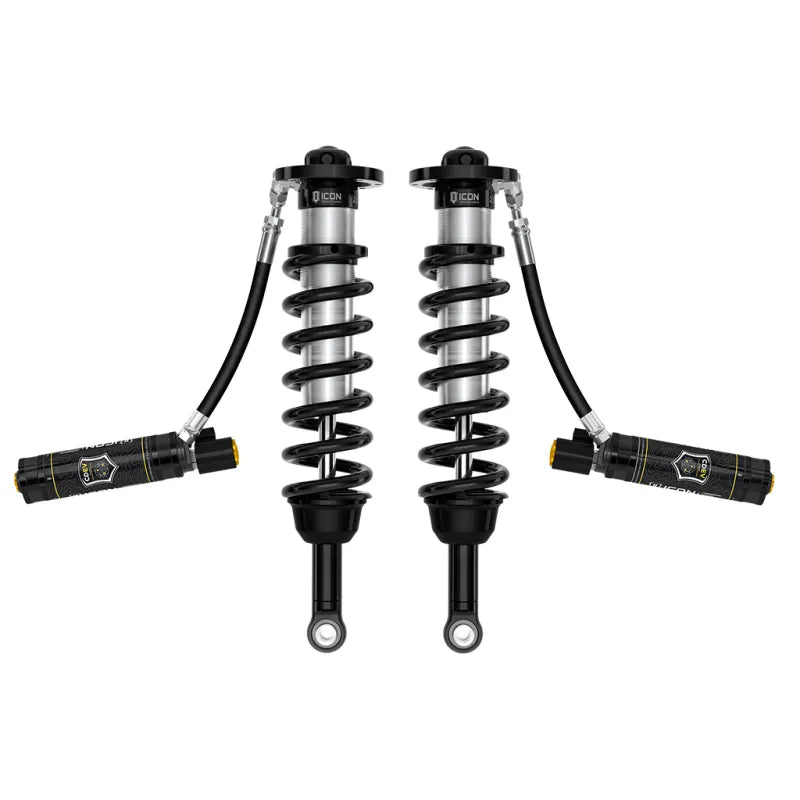

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2024 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6 Inch Lift Performance Suspension System and allow up to 5-6 Inch of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed.This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle.Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with 2.5 Aluminum Series CDEV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.Features and Benefits:Increased wheel travel and improved ride quality over stockVehicle specific tuned for superior shock damping and controlSpecific length designed for use with ICON 6 Inch Lift Performance Suspension SystemAdjustable ride height offers 5-6 Inch of front lift over stockRemote reservoirs maintain cooler operating temperatures during extended off-road useICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)ICON engineered coil springs6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated shock bodies with 7/8 Inch diameter shaftsFK rod end bearings for extended longevity and minimal deflectionFully rebuildable and re-tunableDetailsMaterial: Steel, AluminumActive Or Passive Suspension: ActiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 20.23Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ElectronicDamping Type: OilDust Shield Included: NoExtended Length: 26.08Front Spring Rate: 700 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 6.0 InchMaximum Ride Height Raising Distance: 6.0Minimum Lift: 5.0 InchOem Wheels & Tires Fitment: NoRecommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: 20x9 Inch W/ 5.625 Inch Backspace / 16mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild KitShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 5.86Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit

Features:

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Specific length designed for use with ICON 6" Lift Performance Suspension System
• Adjustable ride height offers 5-6" of front lift over stock
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
