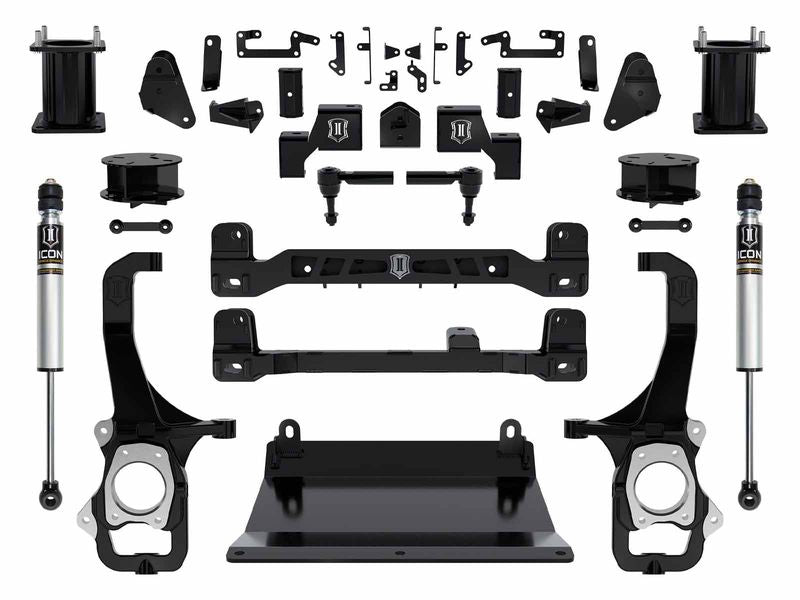

2022-2024 Toyota Tundra 6 Inch Lift Stage 1 Suspension System Icon Vehicle Dynamics

Part #: K53271

Optimized design to fit 37 Inch tires with full articulation (larger tires may fit but fender trimming and modifications will be required).Features and Benefits:Maintains factory track widthFront coilover spacer kit with heavy duty steel constructionProvides 6 Inch front suspension lift with only 4 Inch of crossmember dropSingle piece high-strength ductile iron steering knuckles with built-in 4 Inch dropHight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plateIncluded sway bar drop brackets reduce bind in OE sway bar linksFront and rear heavy-duty bump stop bracketsHigh angle outer tie-roads feature durable, metal on metal greaseable tie rod ends2.0 Aluminum Series rear shocks to improve rear suspension performanceRear coil spring spacer kit to provide lift while retaining factory rear coil springsImproved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspensionDetailsActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: NoGrade Type: PerformanceMaximum Lift: 6.0 InchMaximum Lift Front: 6.0 InchMaximum Lift Rear: 3.0 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: NoRear Reservoir Style: InternalRear Shock Body Diameter: 2.0Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm OffsetShocks Included: YesStrutS Included: NoAdd On Part: 58561Dj - 22-25 Tundra/23-25 Sequoia Billet UCA Dj Pro Kit, 58461Dj - 22-25 Tundra/23-25 Sequoia Tubular UCA Dj Pro Kit

Features:

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Front coilover spacer kit with heavy duty steel construction
• Provides 6" front suspension lift with only 4" of crossmember drop
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks to improve rear suspension performance
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
