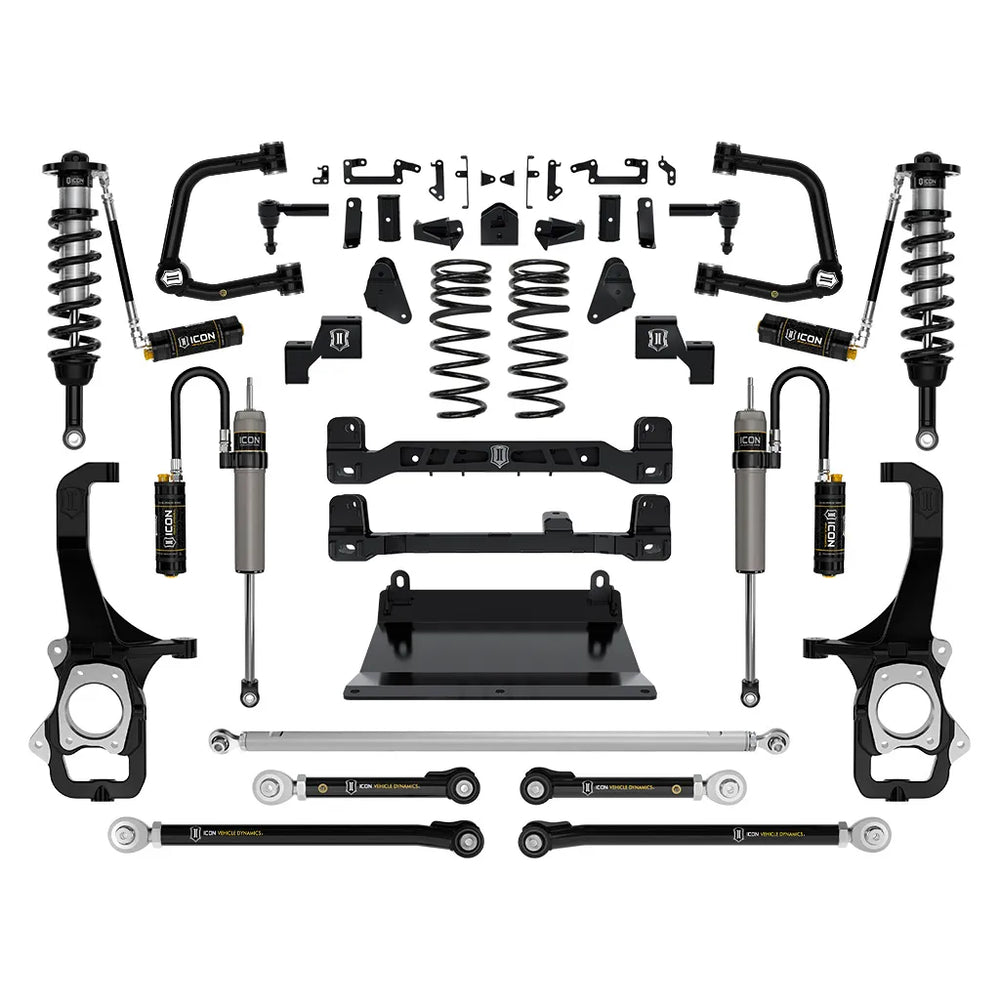

2022-2024 Toyota Tundra 6 Inch Lift Stage 7 Suspension System Tubular CDCV Icon Vehicle Dynamics

Part #: K53277T

2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling.Features and Benefits:All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hardSystem allows for up to 40 Percent increase in front wheel travel over stock without overstressing OE componentsOptimized design to fit 37 Inch tires with full articulation (larger tires may fit but fender trimming and modifications will be required)Maintains factory track widthOptimized suspension geometry nearly eliminates the bump steer found in stock TundrasAdjustable front ride heights from 5-6 Inch of front lift over stock (up to 6 Inch of lift with only 4 Inch of crossmember drop)Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivabilityPatented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulationSingle piece high-strength ductile iron steering knuckles with built-in 4 Inch dropHight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plateIncluded sway bar drop brackets reduce bind in OE sway bar linksFront and rear heavy-duty bump stop bracketsHigh angle outer tie-roads feature durable, metal on metal greaseable tie rod endsICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road drivingTubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustmentOn-vehicle adjustable billet rear track bar properly centers rear axle while also improve rear suspension performanceImproved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspensionDetailsActive Or Passive Suspension: PassiveAdjustable Compression: YesAdjustable Control Arm: YesAdjustable Damping: YesAdjustable Rebound: NoBushings Included: NoCoil Quantity Front: 2.0Coils Quantity Front: 2.0Coils Quantity Rear: 2.0Damping Adjustment Type: ManualFront Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 6.0 InchMaximum Lift Front: 6.0 InchMaximum Lift Rear: 3.5 InchMinimum Lift Front: 5.0 InchMinimum Lift Rear: 3.0 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: NoRear Reservoir Style: RemoteRear Shock Body Diameter: 2.5Rear Spring Rate Type: Progressive Triple RateRecommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelStrutS Included: NoAdd On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 191014 - .25 Inch Collar Spanner Pin Wrench, 55153 - 22-25 Tundra/23-25 Sequoia Air Ride/Auto Headlight Bracket Kit, 198001 - Billet Spanner Wrench Kit, 191013 - Nipple Greasing Adapter Kit

Features:

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6" of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
• Billet rear upper and high clearance lower links improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system
• Billet rear lower links have replaceable nylon rock sliders to protect the links from trail damage
• On-vehicle adjustable billet rear track bar properly centers rear axle while also improve rear suspension performance
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
