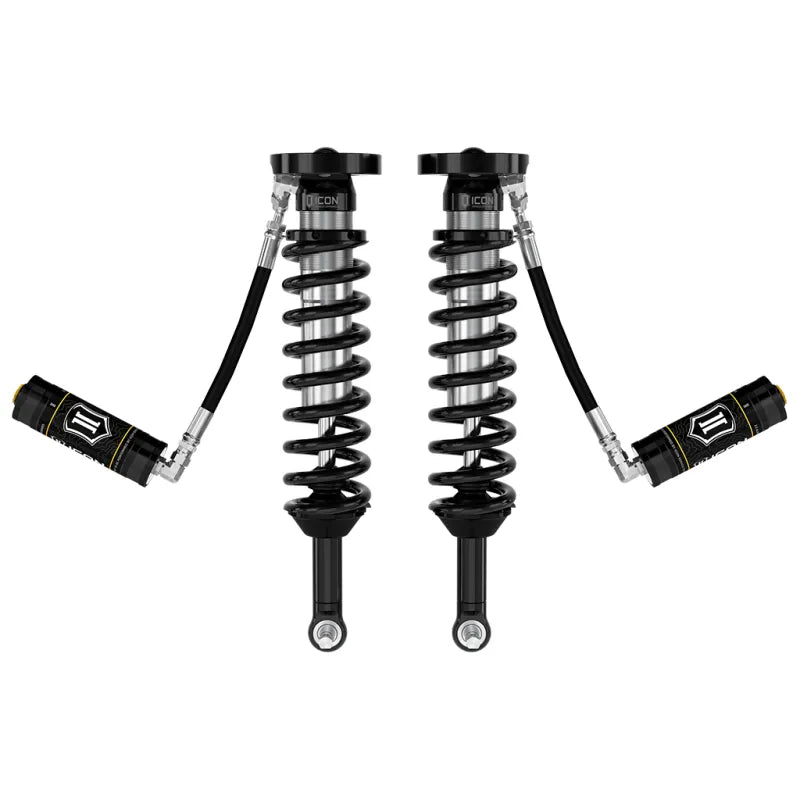

2023-2024 Canyon/Colorado Trail Boss & ZR2 2.5 Series Coilover Kit Remote Reservoir Icon Vehicle Dynamics

Part #: 71670

ICON Vehicle Dynamics V.S. Series 2.5 Inch coilover shocks are an incredible upgrade for the front-end of 2023-2024 GMC Canyon and 2023-2024 Chevrolet Colorado Trail Boss and Colorado ZR2 trucks.Their longer length offers a 20 Percent increase in total front wheel travel compared to stock, for a total of 10.25 Inch of front wheel travel. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5 Inch of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations.The larger 2.5 Inch diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss and ZR2.Features and Benefits:20 Percent increase in front wheel travel and improved ride quality over stockVehicle specific tuned for superior shock damping and controlAdjustable for 1.75-2.5 Inch of front lift height over stockRemote reservoirs maintain cooler operating temperatures during extended off-road useICON engineered coil springsCorrosion resistant CAD plated 2.5 Inch diameter shock bodies7/8 Inch diameter hardened chrome plated shafts6061 Aircraft grade aluminum CNC machined componentsPTFE lined spherical bearings for extended longevity and minimal deflectionHigh strength alloy CNC machined lower bar pin and application specific mounting hardwareFully rebuildable and re-tunable100 Percent Bolt-on - no drilling, cutting, or welding necessary for installationDetailsMaterial: Steel, AluminumActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 18.47Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Type: OilDust Shield Included: NoExtended Length: 23.83Front Spring Rate: 450 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: Bar PinMaximum Lift: 2.5 InchMaximum Ride Height Raising Distance: 2.5Minimum Lift: 1.75 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35 X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: 17x8.5 Inch W/ 5.46 Inch Backspace / 18mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild KitShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Flat On Bar PinSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 5.37Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 252012 - -4 To -10 Hose Shield Kit

Features:

• 20% increase in front wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 1.75-2.5" of front lift height over stock
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON engineered coil springs
• Corrosion resistant CAD plated 2.5" diameter shock bodies
• 7/8" diameter hardened chrome plated shafts
• 6061 Aircraft grade aluminum CNC machined components
• PTFE lined spherical bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin and application specific mounting hardware
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting, or welding necessary for installation

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
