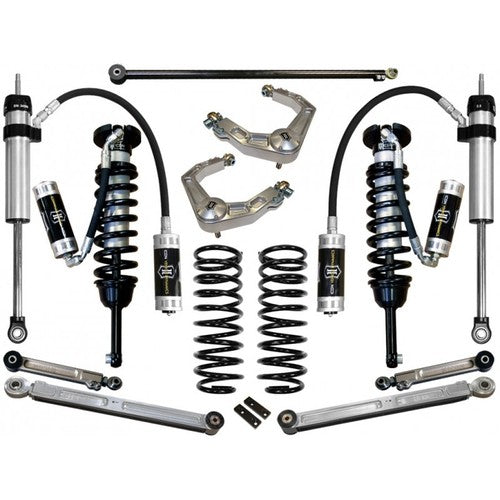

2023-2025 Toyota Sequoia 0-2.13 Inch Lift Stage 1 Suspension System Icon Vehicle Dynamics

Part #: K53231

The ICON Vehicle Dynamics Stage 1 complete suspension system for the 2023-2025 Toyota Sequoia represents our entry level performance suspension system, providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35 Inch tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.Features and Benefits:This Stage 1 system features the 2023-2025 Toyota Sequoia EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Sequoia's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for shorter rear ride heights, these coil springs yield 2 inch of rear lift over stock on a non-TRD Sequoia or 0 Inch of rear lift height on a Sequoia equipped with the TRD Off-Road package, allowing for level a stance front to rear.Rounding out the Stage 1 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2025 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.Vehicle specific design for 2023-2025 Toyota Sequoia2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardwareAdjustable front ride heights from 0-2.13 Inch of front lift over stock with the use of snap ringIncluded sway bar drop brackets reduce bind in OE sway bar linksAllows for full wheel travel without overstressing OE componentsDual rate rear coil springs improve performance and ride quality while providing 0 inch or 2 inch of rear lift, depending on the vehicle's stock suspension package2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performanceAll ICON shock absorbers are fully rebuildable and re-tunableDetailsActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoils Quantity Rear: 2.0Front Reservoir Style: InternalFront Shock Body Diameter: 2.5Grade Type: PerformanceMaximum Lift: 2.13 InchMaximum Lift Front: 2.13 InchMaximum Lift Rear: 2.0 InchMinimum Lift Front: 0.0 InchMinimum Lift Rear: 0.0 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRear Reservoir Style: InternalRear Shock Body Diameter: 2.0Rear Spring Rate Type: Progressive Dual RateRecommended Aftermarket Tires: 35 Inch X 12.50 Inch (Minor Fender Trimming And Modifications May Be Required)Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 6 Inch Backspace / 25mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm OffsetReservoir Style: InternalShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 58561Dj - 22-25 Tundra/23-25 Sequoia Billet UCA Dj Pro Kit, 55156 - 22-25 Tundra/23-25 Sequoia/24-25 Gx550 Diff Drop Kit, 58461Dj - 22-25 Tundra/23-25 Sequoia Tubular UCA Dj Pro Kit, 55164 - 22-25 Tundra/23-24 Sequoia Aluminum Skid Plate Spacer Kit

Features:

• Vehicle specific design for 2023 Toyota Sequoia
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 0-2.13" of front lift over stock with the use of snap ring
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• Dual rate rear coil springs improve performance and ride quality while providing 3" of rear lift
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable

The ICON Stage 1 suspension system for the 23 Sequoia represents our entry level performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.
