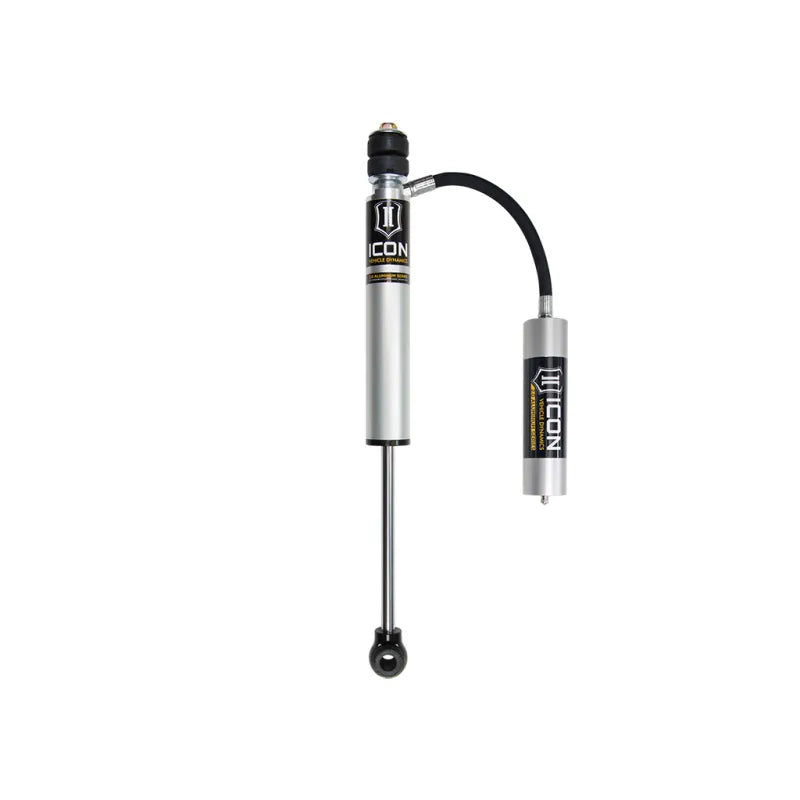

2024-2025 Toyota Tacoma 0-1 Inch Lift Rear V.S. 2.0 Aluminum Series Shock Absorber Remote Reservoir Icon Vehicle Dynamics

Part #: 56518R

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable.For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Aluminum Series shock to handle extra abuse and punishment your suspension will need to endure.Features and Benefits:Nitrogen charged monotube design with remote reservoirOne piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-roadRemote reservoirs maintain cooler operating temperatures during extended off-road use5/8 Inch chrome plated hardened steel shaft resists corrosion and pits6061 aluminum rod end, top cap, and internals ensure strength and durabilityPolyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearancePremium grade 5WT shock oil for consistent suspension damping along a wide temperature rangeNitrile rubber top out bumper for noise free operationRubber dust boot included for added shaft protectionFully rebuildable and re-tunableDetailsColor: Black, Gray, SilverMaterial: Aluminum, SteelFinish: AnodizedActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoAdjustable Ride Height: NoBody Color: GrayBody Diameter: 2 InchBody Material: AluminumBoot Included: NoBore Diameter: 1.75Bushing Color: BlackBushing Included: YesBushing Material: Rubber, PolyurethaneCylinder Color: GrayCylinder Finish: AnodizedCylinder Material: AluminumCylinder Outside Diameter: 2.0Damping Type: OilDust Shield: NoDust Shield Included: YesDust Shield Material: RubberExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceHydraulic Lockout: NoIncludes Bump Stop: NoInternal Construction Type: Single TubeInternal Rebound Bumper: YesInternal Rebound Spring: NoLower Mount Sleeve Inside Diameter: 0.75Lower Mount Sleeve Overall Length: 1.825Lower Mount Type: Loop (Eyelet) BushingMaximum Ride Height Raising Distance: 1.0Minimum Ride Height Raising Distance: 0.0Mounting Hardware Included: YesQuantity: 1 InchRemote Reservoir: YesReservoir Diameter: 2.0Reservoir Hose Inside Diameter: 0.25Reservoir Hose Length: 21.0Reservoir Length: 8.0Reservoir Type: RemoteRod Diameter: 0.625Self Leveling: NoService Parts: 202003 - 2.0 Remote Resi Rebuild KitShaft Diameter: 0.625Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder Of StemShock Absorber Bore Size: 1.75Shock Absorber Rod End Measuring Point: Center Of EyeletSuspension Type: SpringUpper Mount Type: StemValving Type: Digressive, LinearAdd On Part: 252012 - -4 To -10 Hose Shield Kit

Features:

• Parts begin shipping spring 2024!
• Nitrogen charged monotube design with remote reservoir
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• 5/8" chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrile rubber top out bumper for noise free operation
• Rubber dust boot included for added shaft protection
• Fully rebuildable and re-tunable

ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
