2025 Toyota 4Runner 4WD 1.25-3 Inch Lift Stage 1 Suspension System Icon Vehicle Dynamics

Part #: K53401

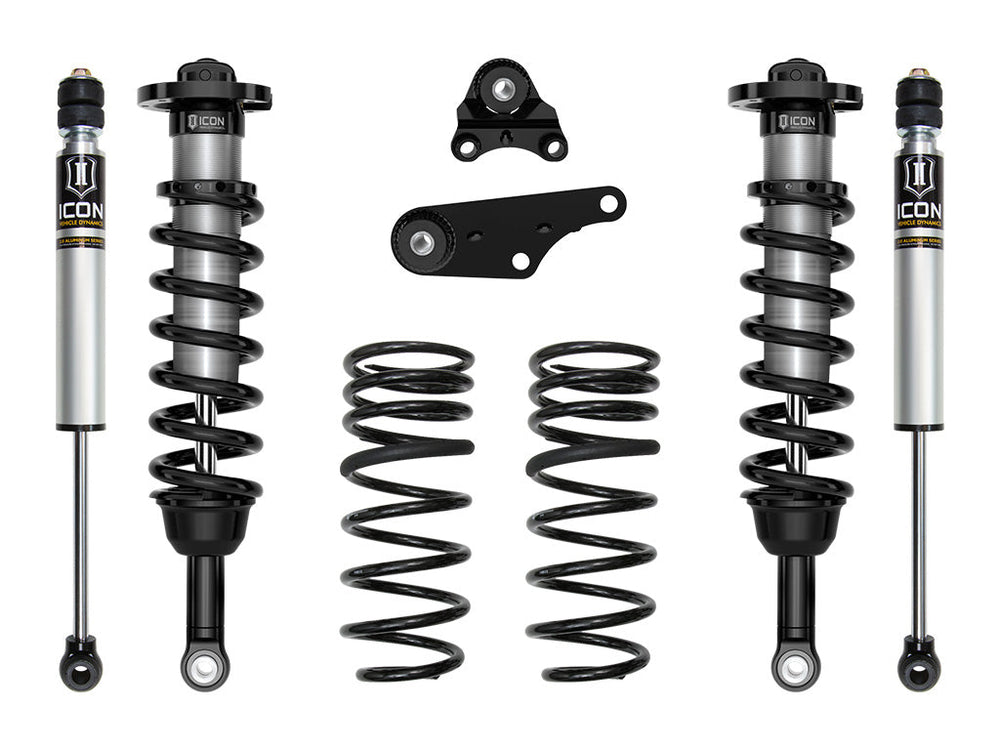

ICON Vehicle Dynamics 2025 Toyota 4Runner suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road.The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are height adjustable from 1.25-3 Inch of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations.The combination of front differential drop brackets and ICON's specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance while .75 Inch of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.The ICON Vehicle Dynamics 2025 Toyota 4Runner Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.Features and Benefits:Vehicle specific tuned front and rear shocks for superior shock damping and controlIncreased wheel travel and improved ride quality over stockFront differential drop provides better maximum operating angle for CV joints and maximizes available wheel travelAdjustable 2.5 Series coilovers provide 1.25-3 Inch front lift height over stock6061 aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated coilover shock bodies with 7/8 Inch shaftsDual rate rear coil springs improve performance and ride quality while providing .75 Inch of rear liftFK Rod End bearings for extended longevity and minimal deflection2.0 Aluminum Series internal reservoir rear shocks with 5/8 Inch shaftsDetailsActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2.0Coil Spring Color: BlackCoil Spring End 1 Type: ClosedCoil Spring End 2 Type: ClosedCoil Spring Material: SteelCoils Quantity Front: 2.0Coils Quantity Rear: 2.0Front Reservoir Style: InternalFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3.0 InchMaximum Lift Front: 3.0 InchMaximum Lift Height Front: 3.0 InchMaximum Lift Height Rear: 0.75 InchMaximum Lift Rear: 0.75 InchMinimum Lift Front: 1.25 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRear Reservoir Style: InternalRear Shock Body Diameter: 2.0Rear Spring Rate Type: Progressive Dual RateRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: 17x8.5 With 6.32 Inch Backspace / 40mm Offset, Icon Alloys - 18x9 With 6.6 Inch Backspace / 40mm OffsetReservoir Style: InternalShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 58552Gdj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Billet UCA Dj Pro Kit Gold Ano, 54202 - 22-25 Tundra/23-25 Sequoia/24-25 Taco/Lc250/Gx550/25 T4R Blt Adj Track Bar, 198001 - Billet Spanner Wrench Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 58452Dj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Tubular UCA Dj Pro Kit, 58552Dj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Billet UCA Dj Pro Kit, 56100 - 07-14 FJ Cruiser 03-25 4Runner/22-25 Tundra/23-25 Sequoia Rear Shin Guards, 56120 - 24-25 Land Cruiser 250 Series/25 4Runner Front Skid Plate, 56121 - 24-25 Land Cruiser 250 Series/25 4Runner Hybrid Trans Skid Plate, 56122 - 24-25 Land Cruiser 250 Series/25 4Runner Front Skid Plate Fascia, 56117 - 24-25 Tacoma/25 4Runner Gas Transmission Skid Plate
