2021-2023 Ford F-150 2WD 0-3 Inch Lift Stage 3 Suspension System Icon Vehicle Dynamics

Part #: K93123

ICON Vehicle Dynamics 2021-2023 Ford F-150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.The Stage 3 system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from 0-3 Inch allowing the use of larger, more aggressive wheel and tire combinations.ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2023 F-150 2WD Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.Features and Benefits:Increased wheel travel and ride quality over stock with no change in towing capacity2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock coolingAdjustable coilovers from 0-3 Inch of lift heightVehicle specific tuned front and rear shocks for superior damping and vehicle control6061 Aircraft grade aluminum CNC machined componentsHigh strength alloy CNC machined lower bar pinsFK rod end bearings for extended longevity and minimal deflectionCorrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish100 Percent Bolt-on system - no cutting or welding necessary for installDetailsActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoils Quantity Front: 2.0Front Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3.0 InchMaximum Lift Front: 3.0 InchMinimum Lift Front: 0.0 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRear Reservoir Style: PiggybackRear Shock Body Diameter: 2.5Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 252012 - -4 To -10 Hose Shield Kit

Features:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system - No cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers provide 0-3" of lift height over stock
• Billet aluminum upper control arms for added strength, durability, and improved alignment geometry
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• High strength alloy CNC machined lower bar pins

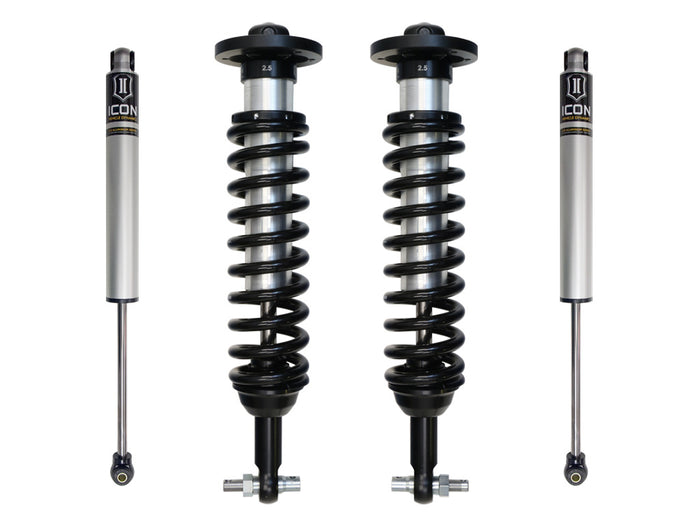

Stage 3 includes 2.5" coilovers with internal reservoirs with height adjustability from 0-3" of lift. Billet UCAs for alignment correction. ICON 2.5 Series piggyback rear rshocks balance the performance of the truck from front to rear.
